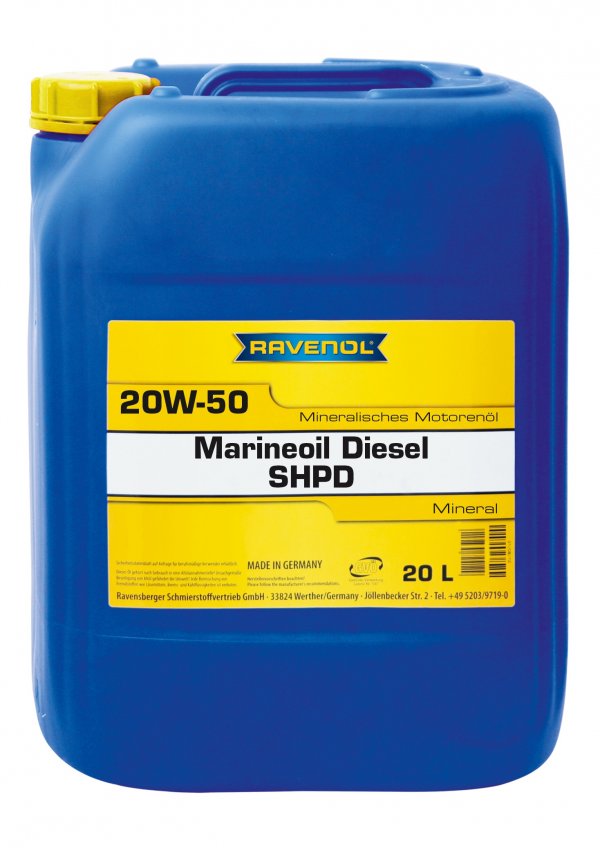

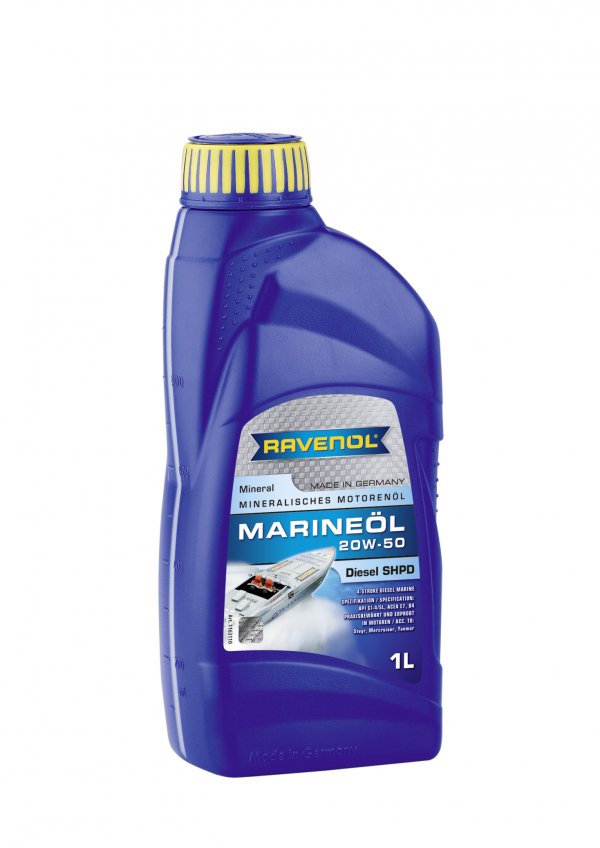

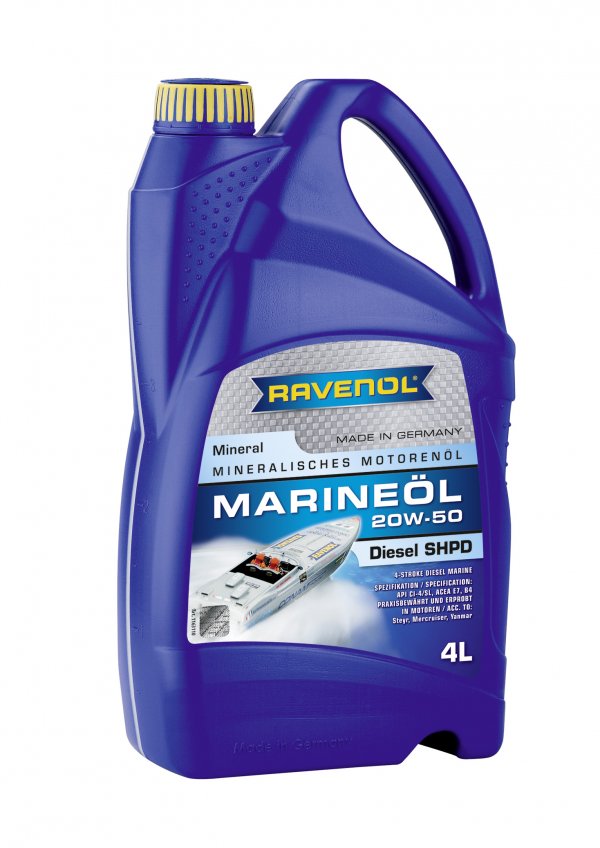

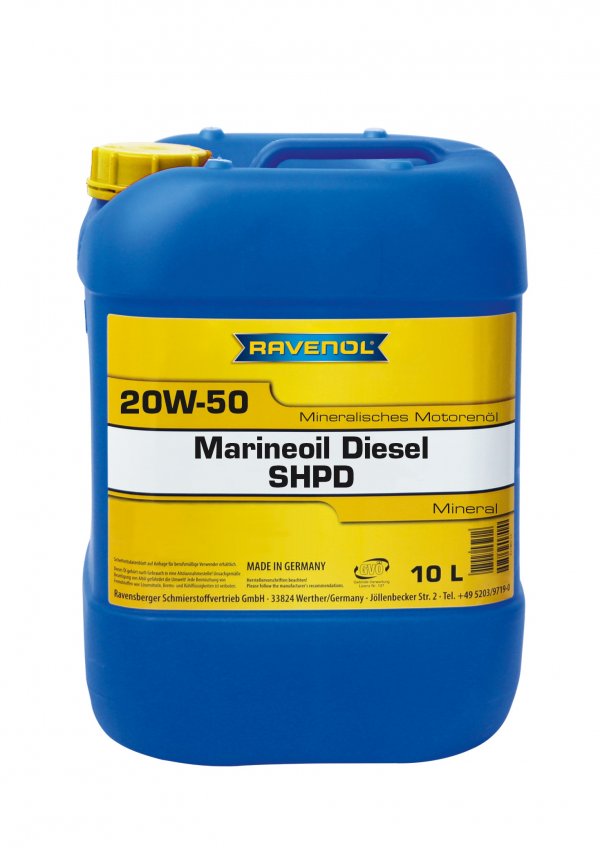

RAVENOL MARINEOIL DIESEL SHPD SAE 20W-50

Category: Marine engine oil
Item number: 1163110
Viscosity: 20W-50
Specification: ACEA B4, ACEA E7, API CI-4
Oil type: Mineral
Recommendation: Mercruiser, STEYR, Yanmar
Application: Marine

RAVENOL MARINEOIL DIESEL SHPD 20W-50 is a SHPD multi-range engine oil for marine diesel engines.RAVENOL MARINEOIL DIESEL SHPD 20W-50 corresponds to the demands of the SAE class 20W-50. This viscosity classification guarantees a good lubricating film also under complicate operating conditions.Quality Classification:RAVENOL MARINEOIL DIESEL SHPD 20W-50 is tried and tested for aggregates specifying:Specifications: API CI-4, ACEA E7, B4Recommendations: Steyr, Mercruiser, YanmarTechnical Characteristics:RAVENOL MARINEOIL DIESEL SHPD 20W-50 offers:an extreme high pressure absorption capacitya very high oxidation stabilityan excellent aging resistancean excellent viscosity temperature behaviourhigh safety reserves also under boundary lubrication conditionssuitability for extended oil change intervalssuitability for complicate operating conditionsa good water separation behaviourTechnical Values:CharacteristicsUnitDataTest according toDensity at 20°Ckg/m³881,0EN ISO 12185Colour bluevisualViscosity at 100°Cmm²/s18,4DIN 51562-1Viscosity at 40°Cmm²/s161,3DIN 51562-1Viscosity Index VI 128DIN ISO 2909Pourpoint°C-36DIN ISO 3016Flashpoint°C250DIN ISO 2592TBNmg KOH/g11,2ASTM D2896Sulphated ash%wt.1,44DIN 51575All indicated data are approximate values and are subject to the commercial fluctuations.

Application Note

RAVENOL MARINEOIL DIESEL SHPD 20W-50 is tried and tested for aggregates specifying:Specifications: API CI-4, ACEA E7, B4Recommendations: Steyr, Mercruiser, YanmarTechnical Characteristics:RAVENOL MARINEOIL DIESEL SHPD 20W-50 offers:an extreme high pressure absorption capacitya very high oxidation stabilityan excellent aging resistancean excellent viscosity temperature behaviourhigh safety reserves also under boundary lubrication conditionssuitability for extended oil change intervalssuitability for complicate operating conditionsa good water separation behaviourTechnical Values:CharacteristicsUnitDataTest according toDensity at 20°Ckg/m³881,0EN ISO 12185Colour bluevisualViscosity at 100°Cmm²/s18,4DIN 51562-1Viscosity at 40°Cmm²/s161,3DIN 51562-1Viscosity Index VI 128DIN ISO 2909Pourpoint°C-36DIN ISO 3016Flashpoint°C250DIN ISO 2592TBNmg KOH/g11,2ASTM D2896Sulphated ash%wt.1,44DIN 51575All indicated data are approximate values and are subject to the commercial fluctuations.

Technical Product Data

PropertyUnitDataAudit
ColourblauVISUELL
Sulphated Ash%wt.1,2DIN 51575
tbnmg KOH/g11,2ASTM D2896
Viscosity at 100 °Cmm²/s18,4DIN 51562-1
Viscosity at 40 °Cmm²/s161,3DIN 51562-1
Viscosity Index VI128DIN ISO 2909
Density at 20 °Ckg/m³878,0EN ISO 12185
Flashpoint°C250DIN EN ISO 2592
Pourpoint°C-36DIN ISO 3016

All indicated data are approximate values and are subject to the commercial fluctuations.
