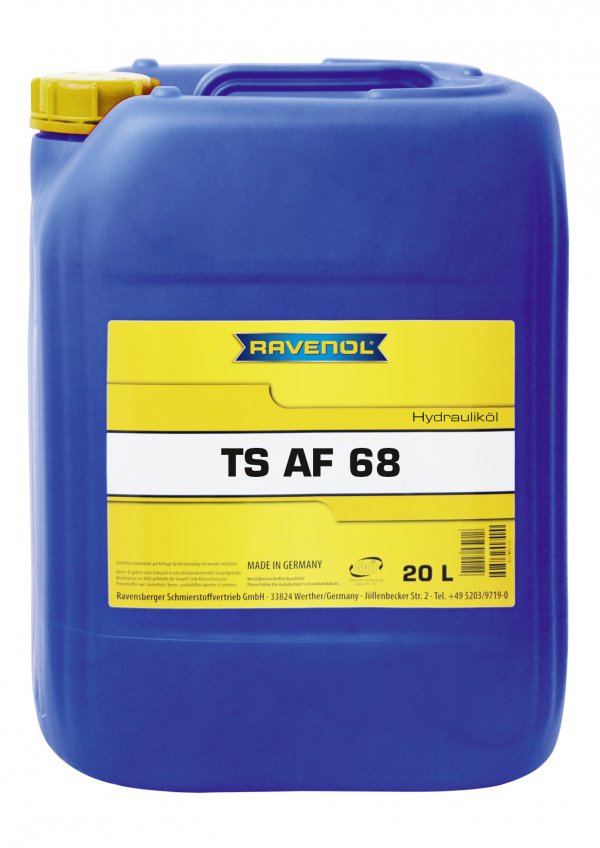

RAVENOL Hydraulikoel TS AF 68
is a zinc and ash-free compounded oil based phosphorous and sulfur intended especially for use in the metal industry. Excellent results were achieved in the Timken test. Through the addition of selected ingredients,
RAVENOL Hydraulikoel TS AF 68
has excellent wear protection, good oxidation stability and has a long service life even under extreme conditions. Compatibility with sealants is neutral. Furthermore, the additives provide corrosion protection and prevent foaming.
RAVENOL Hydraulikoel TS AF 68
exceeds the requirements of DIN 51 524 part 2 for HLP hydraulic oils.
Application Note
RAVENOL Hydraulikoel TS AF 6
is for use as a hydraulic fluid in the metal industry, if zinc and ash-free hydraulic oil and the specification DIN 51 524, Part 2 is required.
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Colour | gelbbraun | VISUELL | |
| Viscosity at 100 °C | mm²/s | 9,1 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 68,1 | DIN 51562-1 |
| Viscosity Index VI | 108 | DIN ISO 2909 | |
| Density at 20 °C | kg/m³ | 866,1 | EN ISO 12185 |
| Flashpoint | °C | 249 | DIN EN ISO 2592 |
| Pourpoint | °C | -24 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
