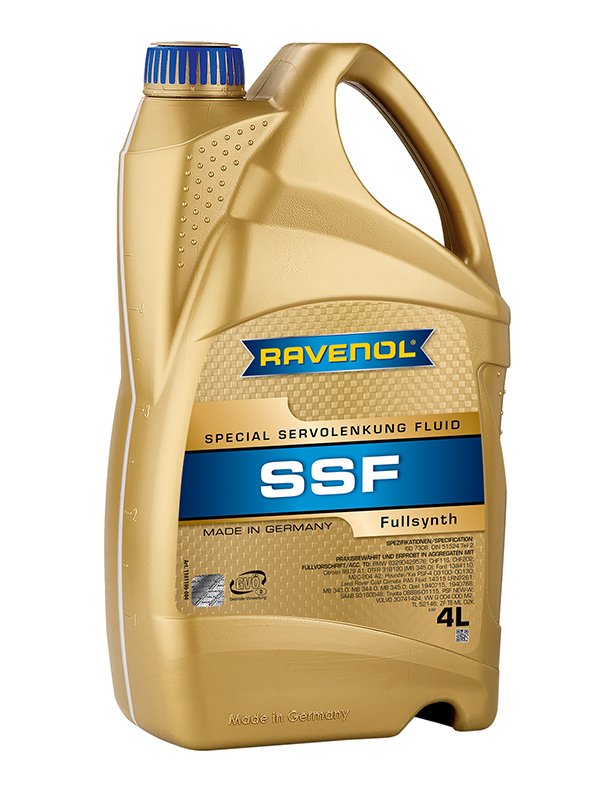

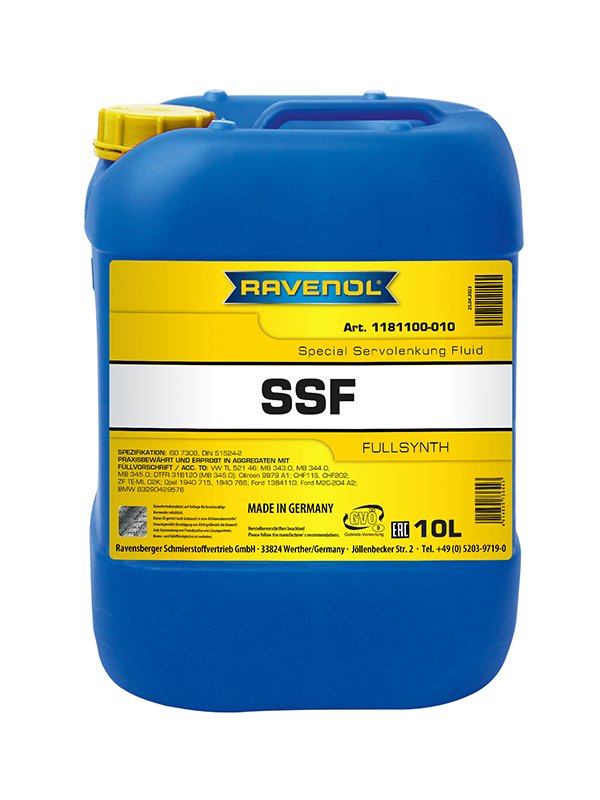

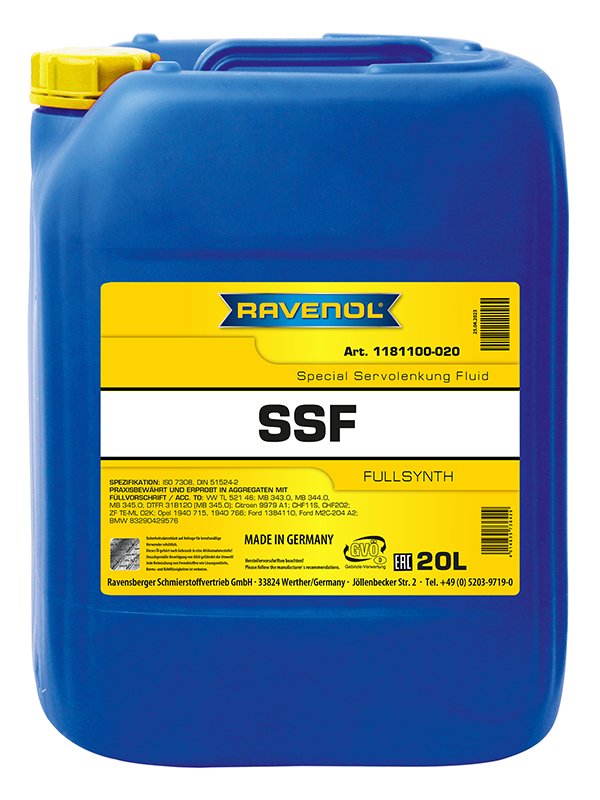

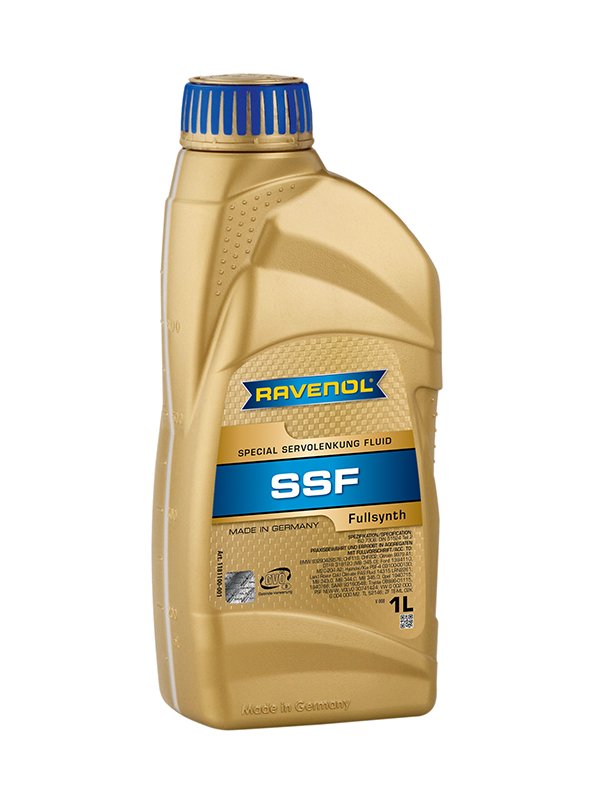

RAVENOL SSF Spec. Servolenkung Fluid

Category: Car hydraulic oil
Item number: 1181100
Specification: DIN 51524-2, ISO 7308
Oil type: Full synthetic
Application: Passenger car

RAVENOL SSF Special Servolenkung Fluid is a full synthetic special hydraulic fluid. Due to its special formulation the properties of RAVENOL SSF Special Servolenkung Fluid are crucial. We assure an excellent cold stability.

Application Note

RAVENOL SSF Special Servolenkung Fluid is designed for use from -55°C bis +130°C and is therefore recommended for the latest developments in the vehicle market.

RAVENOL SSF Special Servolenkung Fluid fulfils the requirements of VW-Specification TL 521 46 and has therefore an optimal performance behaviour as central hydraulic oil in power steering, rear axle steering, level control, hydro pneumatic suspension, shock absorbers, for active damping and engine protection, for hydrostatic drive of fan, alternator and air conditioning, for stability and traction systems (ABS/ASR/ASC), central locking, electro-hydraulic convertible top control, hydraulic brake booster and hydro pneumatic suspension for VW, Audi, Seat, Skoda. Especially to be used in cold countries.

Characteristics

  • Extremely low pour point
  • Improved viscosity and coefficient of friction behaviour
  • A very good protection against consumption
  • Excellent thermal stability
  • Improved EP-characteristics
  • A good foaming behaviour
  • Neutral behaviour towards sealing materials
  • Reliable protection against corrosion

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³829,0EN ISO 12185
ColourgrünVISUELL
Viscosity at 100 °Cmm²/s6,6DIN 51562-1
Viscosity at 40 °Cmm²/s19,7DIN 51562-1
Viscosity at -40 °Cmm²/s900ASTM D445
Viscosity Index VI333DIN ISO 2909
Brookfield Viscosity at -40 °CmPa*s980ASTM D2983
Pourpoint°C-55DIN ISO 3016
Flashpoint°C166DIN EN ISO 2592

All indicated data are approximate values and are subject to the commercial fluctuations.
