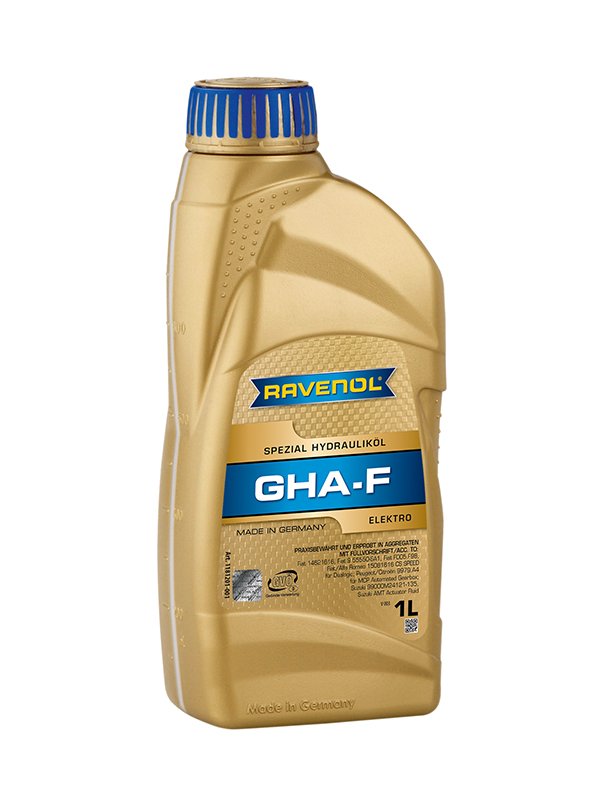

RAVENOL GHA-F Gearbox Hydraulic Actuator Fluid

Category: Car hydraulic oil
Item number: 1181201
Oil type: Mineral
Application: Passenger car

RAVENOL Gearbox Hydraulic Actuator Fluid GHA-F is a special hydraulic fluid, based on synthetic and mineral oil with non-ash forming additives.

The properties of RAVENOL Gearbox Hydraulic Actuator Fluid GHA-F are decisively determined by its special formulation. We guarantee an excellent low temperature stability.

Application Note

RAVENOL Gearbox Hydraulic Actuator Fluid GHA-F is designed for a range of application from -40°C to +100°C.

RAVENOL Gearbox Hydraulic Actuator Fluid GHA-F is used in electrically controlled MCP gearboxes from Peugeot/Citroën and in Dualogic and Selespeed gearboxes from FIAT/Alfa Romeo and therefore, shows ideal performance as a special hydraulic fluid in electrohydraulic and electrically controlled gears and gearshifts.

Characteristics

  • Extremely low pour point.
  • Improved viscosity and friction value characteristics.
  • Very good wear protection.
  • An excellent thermal stability.
  • Improved EP properties.
  • Good foaming characteristics.
  • Neutral behaviour towards sealing compounds.
  • Reliable protection against corrosion.

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³827,0EN ISO 12185
ColourgrünVISUELL
Viscosity at 100 °Cmm²/s6,6DIN 51562-1
Viscosity at 40 °Cmm²/s19,7DIN 51562-1
Viscosity Index VI333DIN ISO 2909
Pourpoint°C-54DIN ISO 3016
Flashpoint°C164DIN EN ISO 2592

All indicated data are approximate values and are subject to the commercial fluctuations.
