Category:
Hydraulic oil for agricultural vehicles and constr
Item number:
1310712
Oil type:
Synthetic
Approvals:
ZF TE-ML 03E (ZF008204),
ZF TE-ML 05F (ZF008204),
ZF TE-ML 17E (ZF008204),
ZF TE-ML 21F (ZF008204)
Recommendation:
Allison C4,
Caterpillar TO-2,
CNH 410 B,
CNH MAT 3506,
CNH MAT 3525,
CNH MS 1206,
CNH MS 1210,
Deutz-Allis AC Power Fluid 821 XL,
Ford ESN-M2C 86 B,
Ford ESN-M2C-134 D,
John Deere J20C,
John Deere J21A,
Massey Ferguson CMS M1135,
Massey Ferguson CMS M1141,
Massey Ferguson CMS M1143,
Massey Ferguson CMS M1145,
Renault 180596,
SDFG OT-1891A,
VOLVO B6M WB 101 (BM Valmet AWB Achsen),
White Farm (AGCO) Q-1802,
White Farm (AGCO) Q-182616,
ZF TE-ML 06K,
ZF TE-ML 06R,
ZF TE-ML 06S
Application:
Agricultural machinery

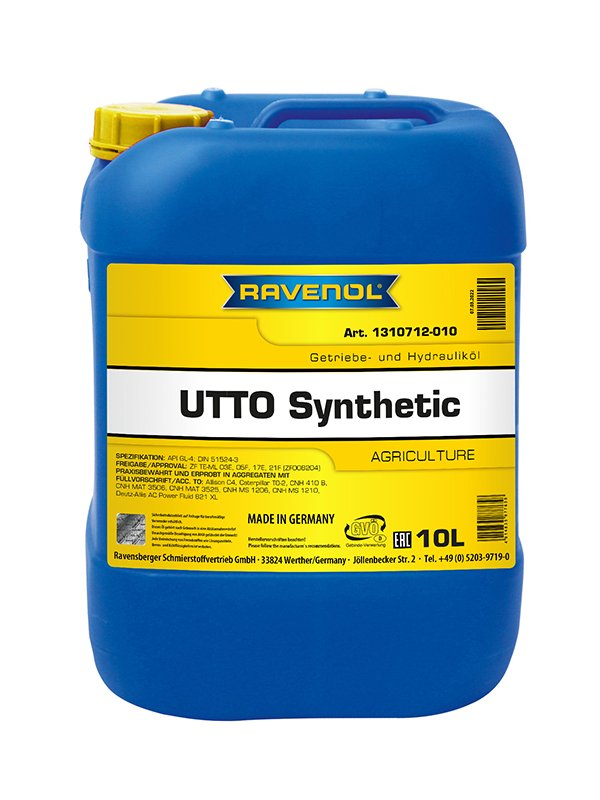

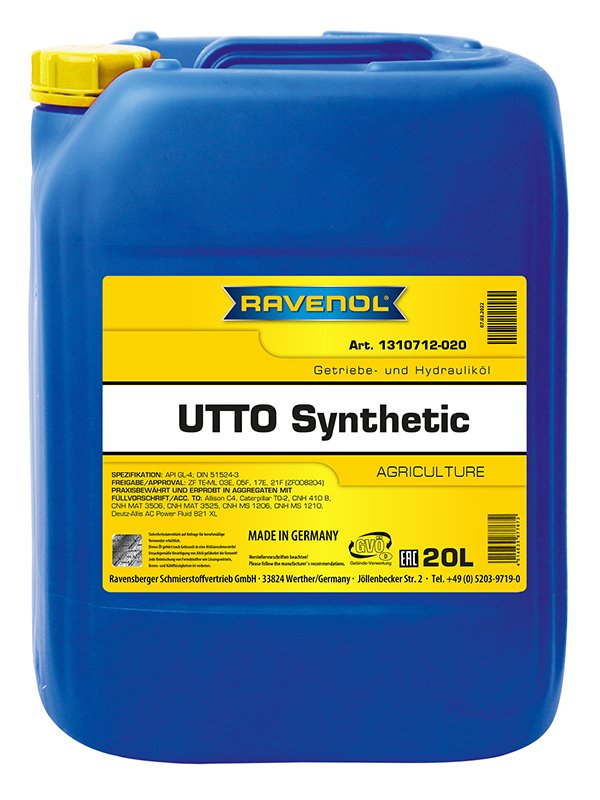

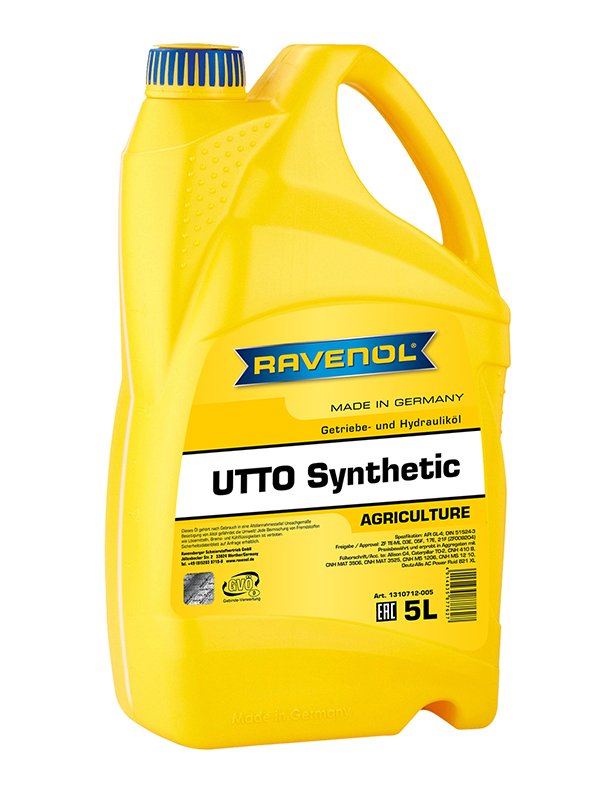

RAVENOL UTTO Synthetic is a combined transmission and hydraulic oil on the basis of solvent refined base oils. It is a special developed universal oil which can be used in combined hydraulic and transmission systems of modern tractors. High quality base oils and exclusive additives guarantee a trouble-free operation of all aggregates at any season.
Application Note
RAVENOL UTTO Synthetic is a special developed universal oil for the lubrication and power transmission of combined hydraulic and transmission systems as it mostly requested for farming tractors and diggers.
RAVENOL UTTO Synthetic is suitable for wet brakes of load change couplings and minor drives.
Characteristics
- a very high stable viscosity index
- a very low pour point
- a high oxidation stability
- a very high pressure absorption capacity
- protection against corrosion and foam formation as far as possible
- a convenient coefficient of friction during running brakes in oil bath (wet brakes) of load change couplings and minor drives
- high shear stability
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 848,0 | EN ISO 12185 |
| Colour | gelb | VISUELL | |
| Viscosity at 100 °C | mm²/s | 12,4 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 71,0 | DIN 51562-1 |
| Viscosity Index VI | 175 | DIN ISO 2909 | |
| Pourpoint | °C | -36 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
