Category:
Gear oil for manual transmissions and drive axis
Item number:
1221109
Viscosity:
75W-110
Oil type:
Full synthetic
Approvals:
ZF TE-ML 05A (ZF008351),
ZF TE-ML 12N (ZF008351),
ZF TE-ML 16F (ZF008351),
ZF TE-ML 21A (ZF008351)
Recommendation:
DAF,
Mack GO-J,
Meets the requirements of Scania STO 1:0,
MIL-L-2105 D,
MIL-PRF 2105 E,
SAE J2360,
ZF TE-ML 05B,
ZF TE-ML 07A,
ZF TE-ML 08,
ZF TE-ML 19C,
ZF TE-ML 21B

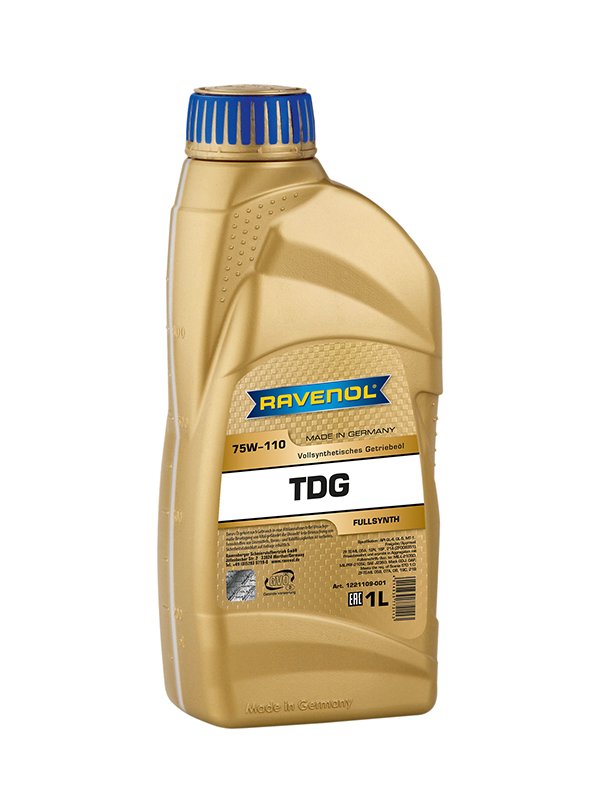

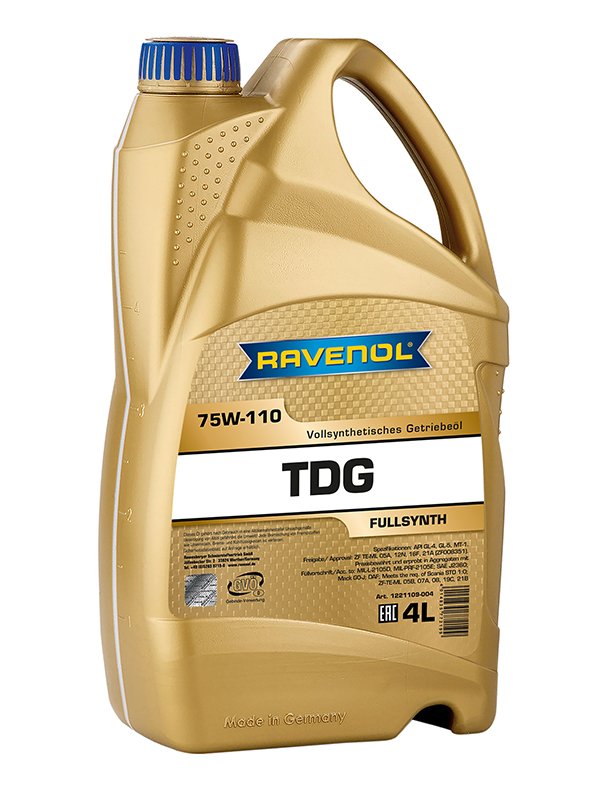

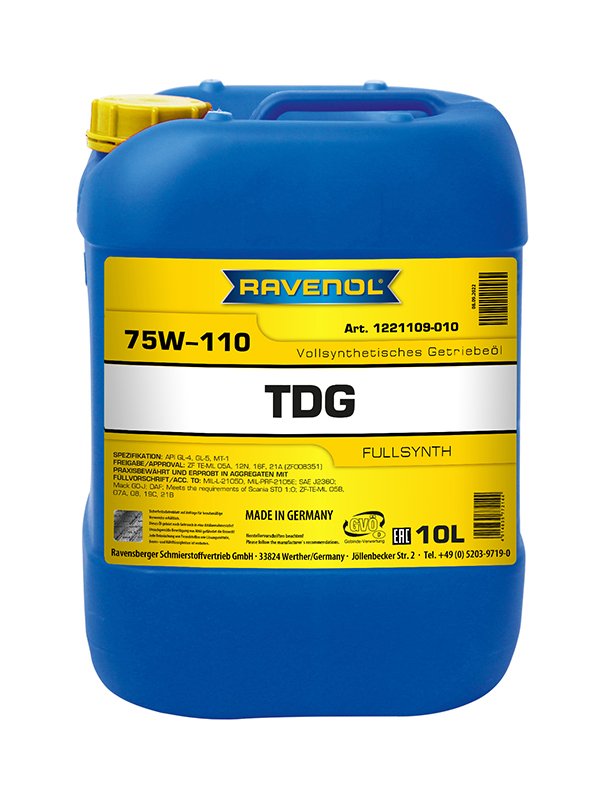

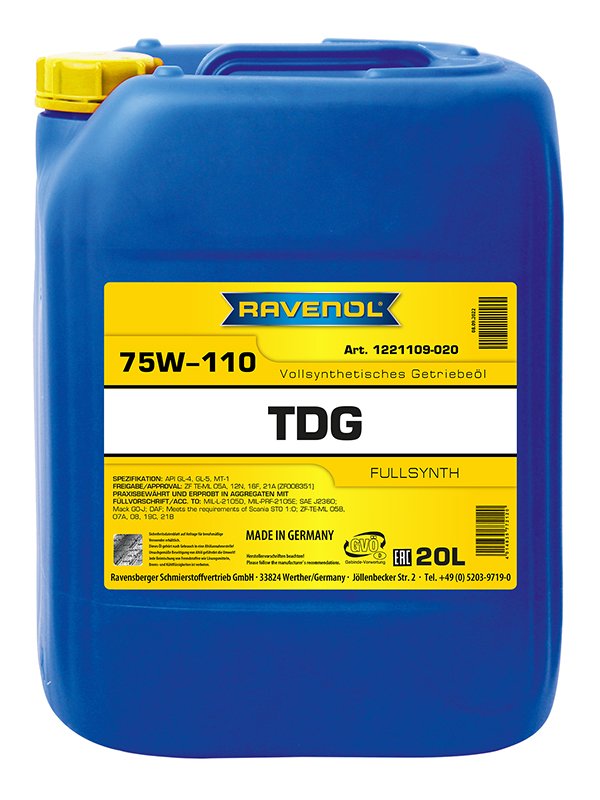

RAVENOL TDG 75W-110 is full synthetic "Total Drive Line" low viscosity transmission oil.
RAVENOL TDG 75W-110 is designed based on synthetic base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL TDG 75W-110 is oil is developed for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks.
Application Note
RAVENOL TDG 75W-110 is universal gear oil developed for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks. This so called "Total Drive Line" oil is as universal product widely usable.
Characteristics
- Excellent thermal stability.
- High protection from rust, corrosion, foaming.
- Low solidification point.
- Excellent EP properties.
- Good shifting behaviour in low temperatures.
- Extended life.
- Fuel savings.
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 874,0 | EN ISO 12185 |
| Colour | gelb | VISUELL | |
| Viscosity at 100 °C | mm²/s | 21,4 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 163,5 | DIN 51562-1 |
| Viscosity Index VI | 155 | DIN ISO 2909 | |
| Brookfield Viscosity at -40 °C | mPa*s | 98.700 | ASTM D2983 |
| Pourpoint | °C | -45 | DIN ISO 3016 |
| Flashpoint | °C | 216 | DIN EN ISO 2592 |
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
All indicated data are approximate values and are subject to the commercial fluctuations.
