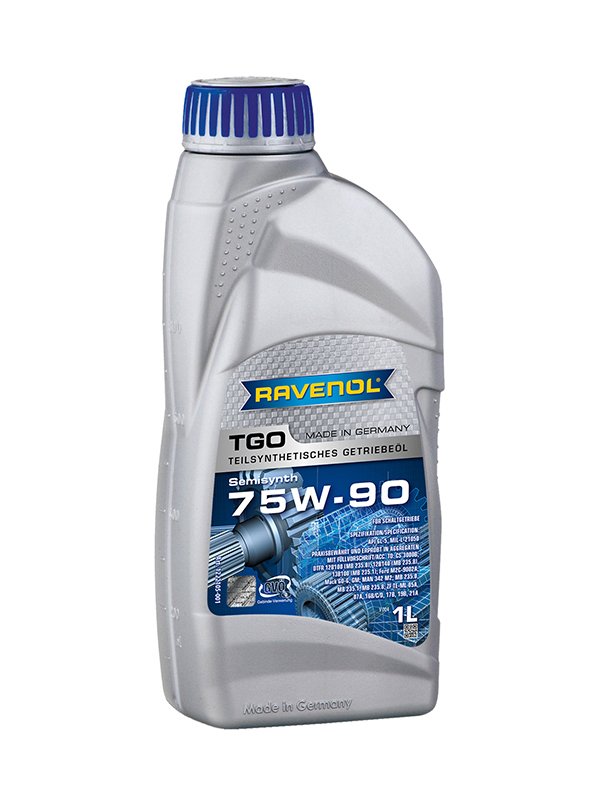

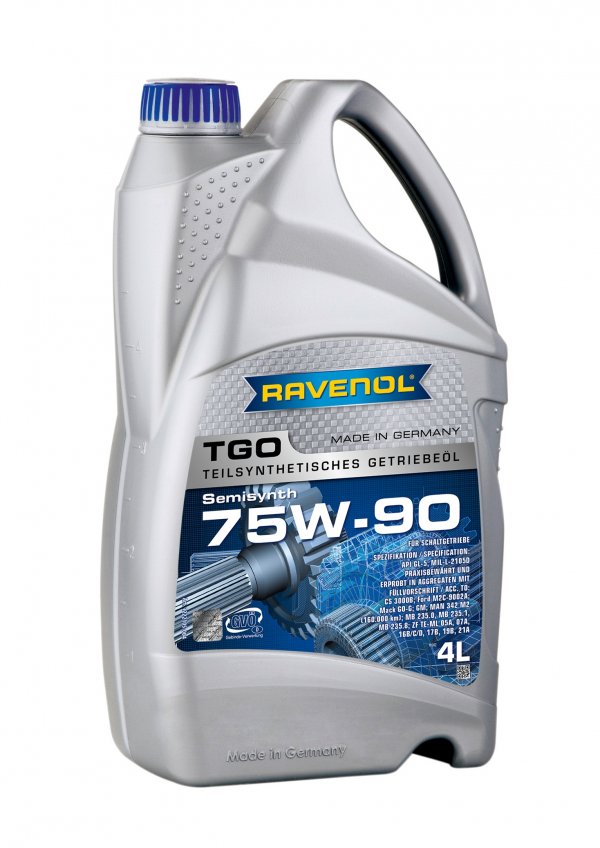

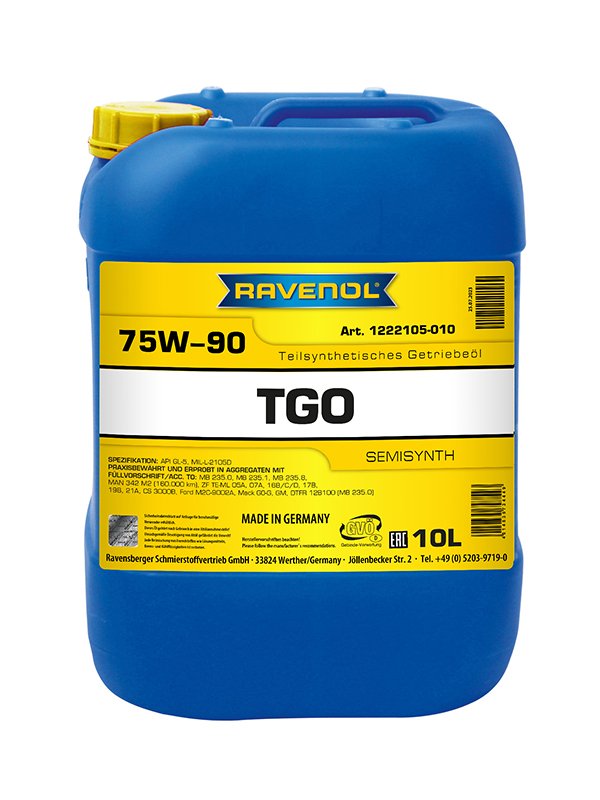

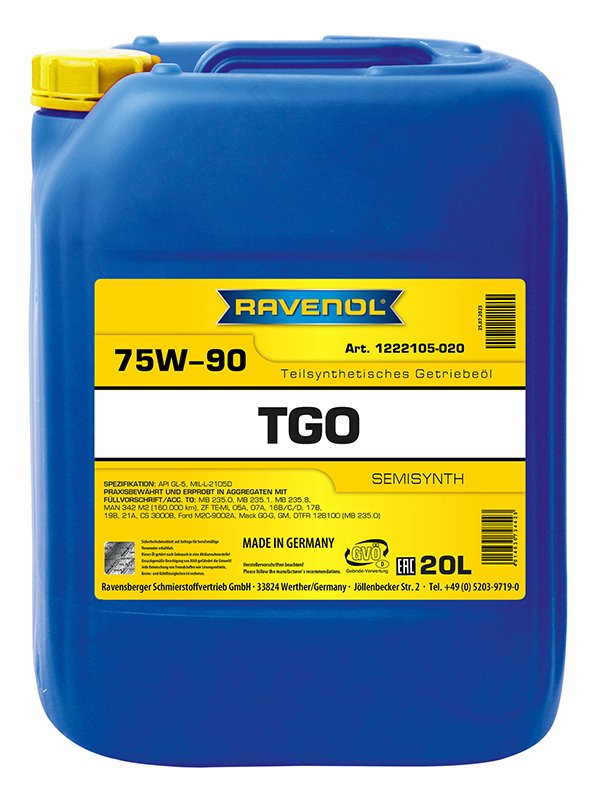

RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is a semi-synthetic transmission oil specifically for maximum duty hypoid geared transmissions.
RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is designed based on high-quality solvent refined and synthetic base oils and specially harmonised additive treatment with extreme pressure (EP) active ingredients and other additives. This exceeds the needs of today's application requirements.
Application Note
RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is a maximum duty transmission oil for use in maximum duty, hypoid geared transmissions (axle drives, manual transmissions, etc.), where maximum duty transmission oils are required.
Characteristics
- Excellent oxidation stability
- Greatest possible protection from rust, corrosion, foaming
- Low solidification point
- Excellent extreme pressure (EP) properties
- High viscosity index
- Fuel savings
Technical Product Data
Property | Unit | Data | Audit |
---|---|---|---|
Density at 20 °C | kg/m³ | 842,0 | EN ISO 12185 |
Colour | gelb | VISUELL | |
Viscosity at 100 °C | mm²/s | 15,7 | DIN 51562-1 |
Viscosity at 40 °C | mm²/s | 97,3 | DIN 51562-1 |
Viscosity Index VI | 173 | DIN ISO 2909 | |
Brookfield Viscosity at -40 °C | mPa*s | 70.000 | ASTM D2983 |
Pourpoint | °C | -45 | DIN ISO 3016 |
Flashpoint | °C | 215 | DIN EN ISO 2592 |
Copper Strip Test at 121 °C | 1b | ASTM D130 |
All indicated data are approximate values and are subject to the commercial fluctuations.
