Category:
Gear oil for manual transmissions and drive axis
Item number:
1223305
Viscosity:
80W-90
Specification:
API GL-3,
API GL-4,
API GL-5,
API MT-1,
MIL-L-2105 A,
MIL-L-2105 B,
MIL-L-2105 C,
MIL-L-2105 D,
MIL-L-2105 E,
MIL-PRF 2105 E
Oil type:
Mineral
Approvals:
MAN 342 Typ M2,
MB-Freigabe 235.6,
VOLVO 97321,
ZF TE-ML 05A (ZF005984),
ZF TE-ML 12E (ZF005984),
ZF TE-ML 16C (ZF005984),
ZF TE-ML 17B (ZF005984),
ZF TE-ML 19B (ZF005984),
ZF TE-ML 21A (ZF005984)
Recommendation:
DAF,
DTFR 12B100 (MB 235.0),
DTFR 12B130 (MB 235.6),
IVECO,
Mack GO-J,
MAN 341 E2,
MAN 341 Z2,
MB 235.0,
Scania STO 1:0,
ZF TE-ML 07A,
ZF TE-ML 16B,
ZF TE-ML 16D,
ZF TE-ML 2B

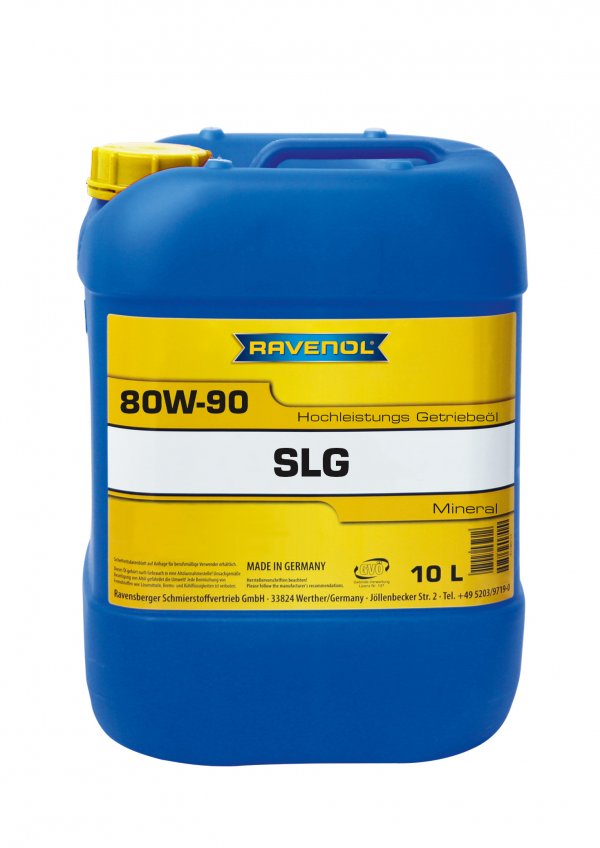

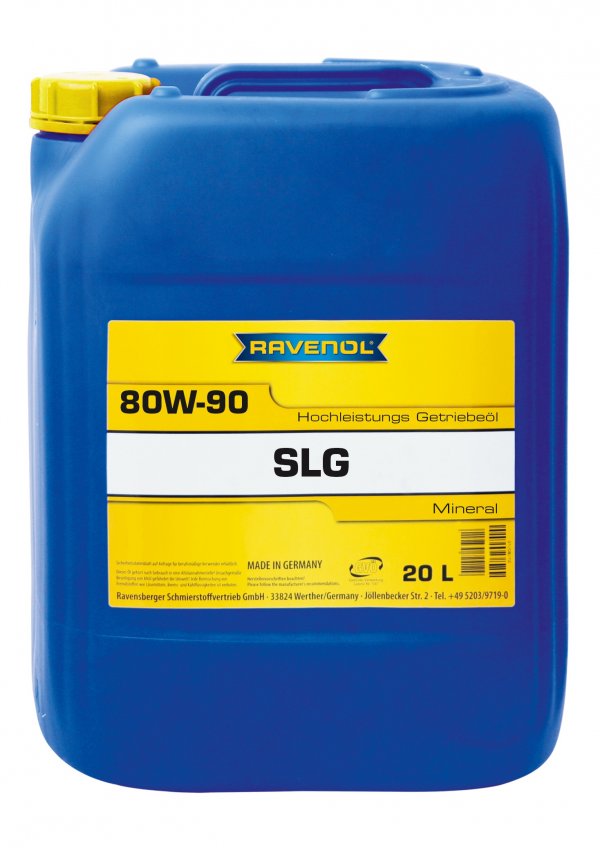

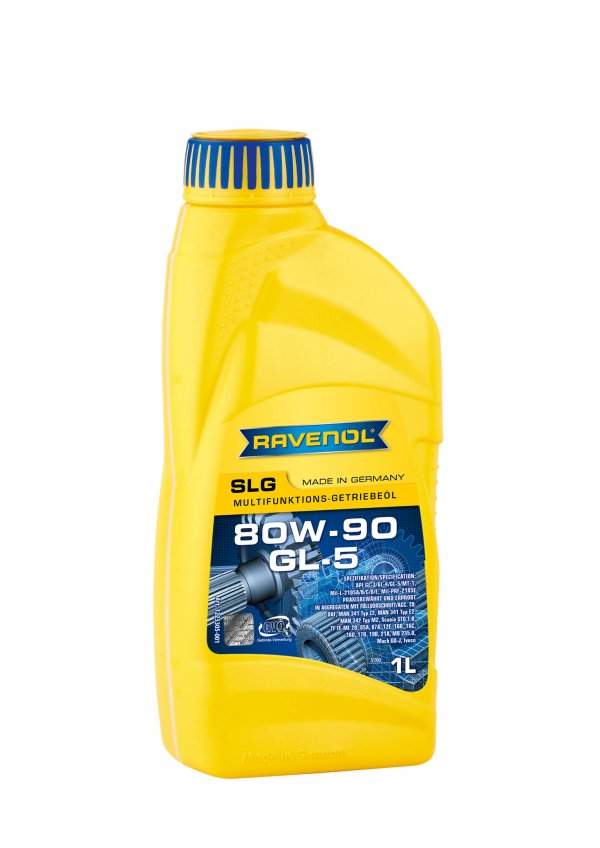

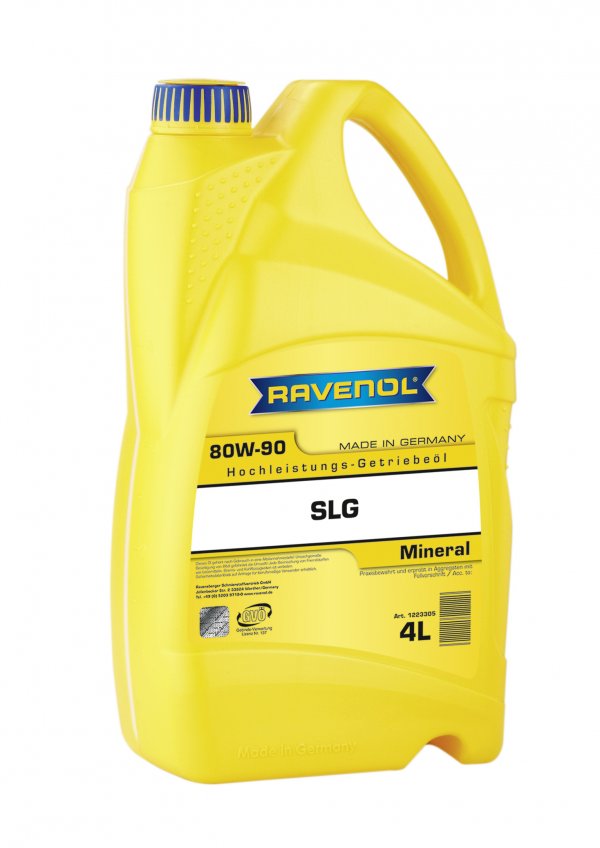

RAVENOL Getriebeoel SLG SAE 80W-90 is high quality multifunction gear oil, bases on high quality solvent refined base oils and special EP-additives.
Due to viscosity modification SAE 80W-90 RAVENOL Getriebeoel SLG SAE 80W-90 offers a good after flow at low temperatures and a high shear stability at high temperatures.
Application Note
RAVENOL Getriebeoel SLG SAE 80W-90 is high quality multifunction gear oil for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks.
Characteristics
- An excellent thermal stability
- Excellent extreme pressure properties
- A good circuit behavior at low temperatures
- An extended service life
- Neutral behavior towards sealing materials
- Reliable protection against wear, sludge, adhesion and corrosion
Technical Product Data
Property | Unit | Data | Audit |
---|---|---|---|
Density at 20 °C | kg/m³ | 889,0 | EN ISO 12185 |
Colour | braun | VISUELL | |
Viscosity at 100 °C | mm²/s | 15,2 | DIN 51562-1 |
Viscosity at 40 °C | mm²/s | 146,4 | DIN 51562-1 |
Viscosity Index VI | 105 | DIN ISO 2909 | |
Brookfield Viscosity at -26 °C | mPa*s | 161.000 | ASTM D2983 |
Pourpoint | °C | -30 | DIN ISO 3016 |
Flashpoint | °C | 200 | DIN EN ISO 2592 |
Copper Strip Test at 121 °C | 1a | ASTM D130 |
All indicated data are approximate values and are subject to the commercial fluctuations.
