Category:
Gear oil for manual transmissions and drive axis
Item number:
1222102
Viscosity:
75W-90
Oil type:
Synthetic

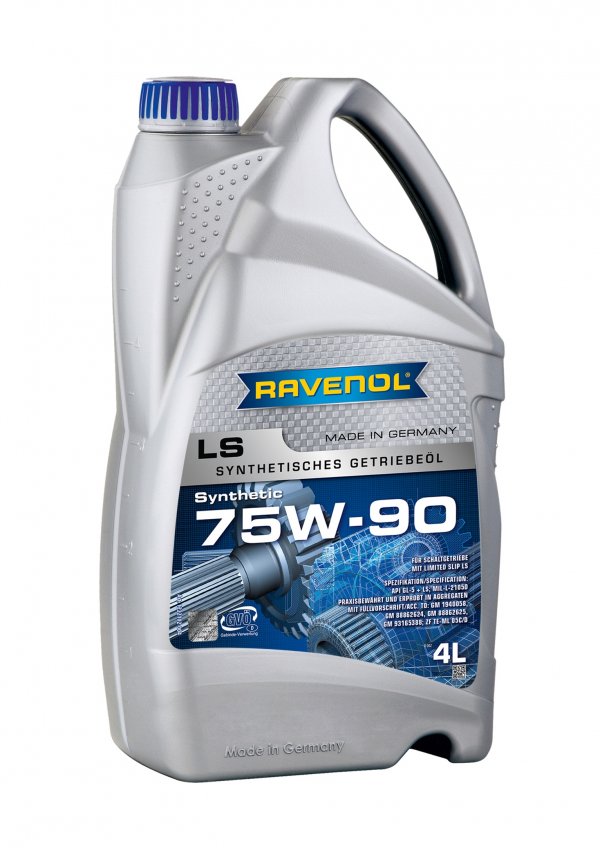

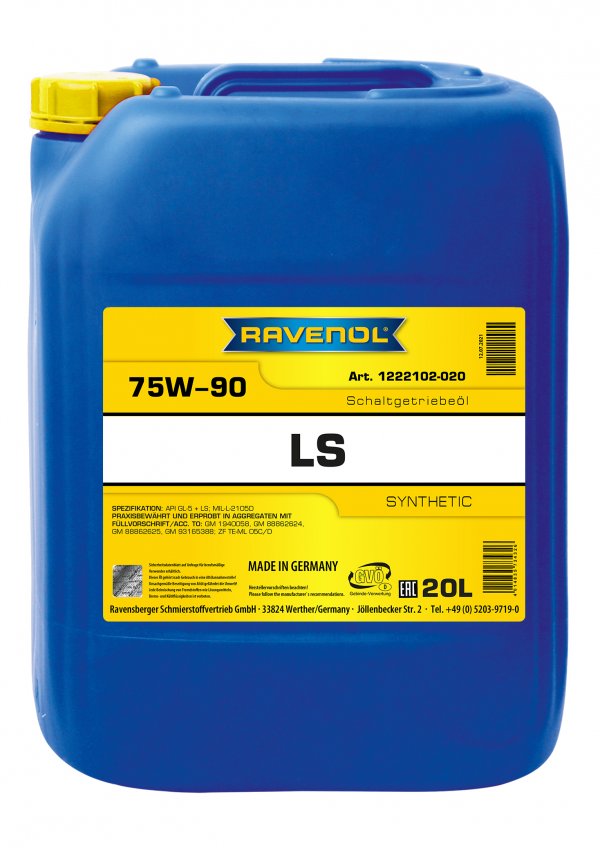

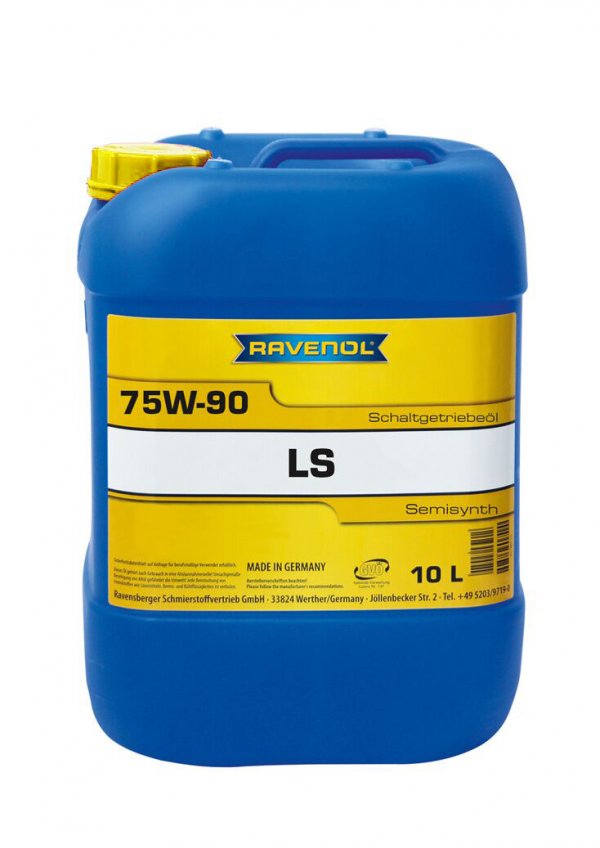

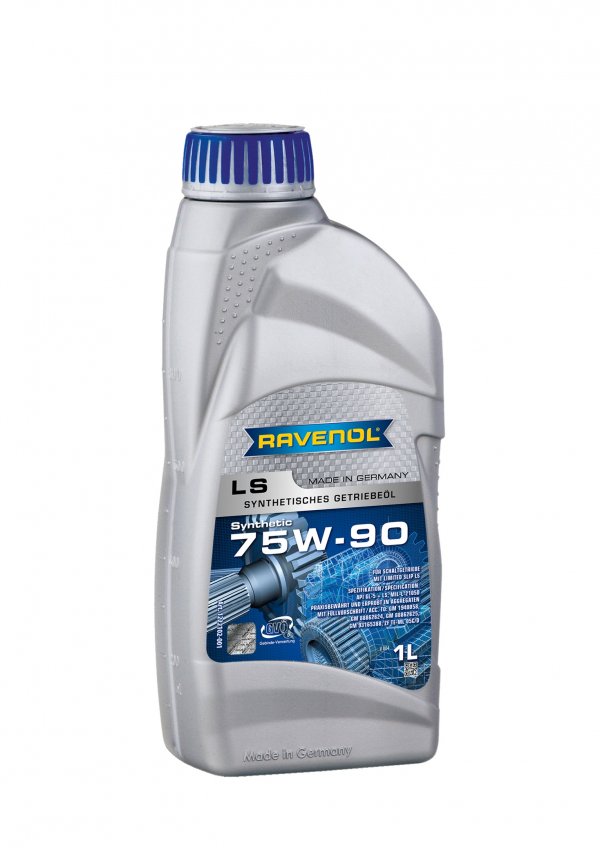

RAVENOL Getriebeoel LS SAE 75W-90 is a synthetic lubricant for mechanical transmissions.
RAVENOL Getriebeoel LS SAE 75W-90 is designed based on high-quality solvent refined and synthetic base oils with special additive treatment and inhibition for higher stress on manual transmission oils and ensuring trouble-free transmission function.
Application Note
RAVENOL Getriebeoel LS SAE 75W-90 was developed specifically for use in differential gear units with limited slip. It also ensures trouble-free lubrication in self-locking, hypoid geared transmissions.
Characteristics
- excellent oxidation stability
- excellent protection against rust and corrosion
- prevents foaming
- outstanding extreme pressure properties
- excellent limited slip properties
- fuel savings
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 870,0 | EN ISO 12185 |
| Colour | gelb | VISUELL | |
| Viscosity at 100 °C | mm²/s | 17,1 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 118,3 | DIN 51562-1 |
| Viscosity Index VI | 158 | DIN ISO 2909 | |
| Brookfield Viscosity at -40 °C | mPa*s | 88.800 | ASTM D2983 |
| Pourpoint | °C | -42 | DIN ISO 3016 |
| Flashpoint | °C | 192 | DIN EN ISO 2592 |
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
All indicated data are approximate values and are subject to the commercial fluctuations.
