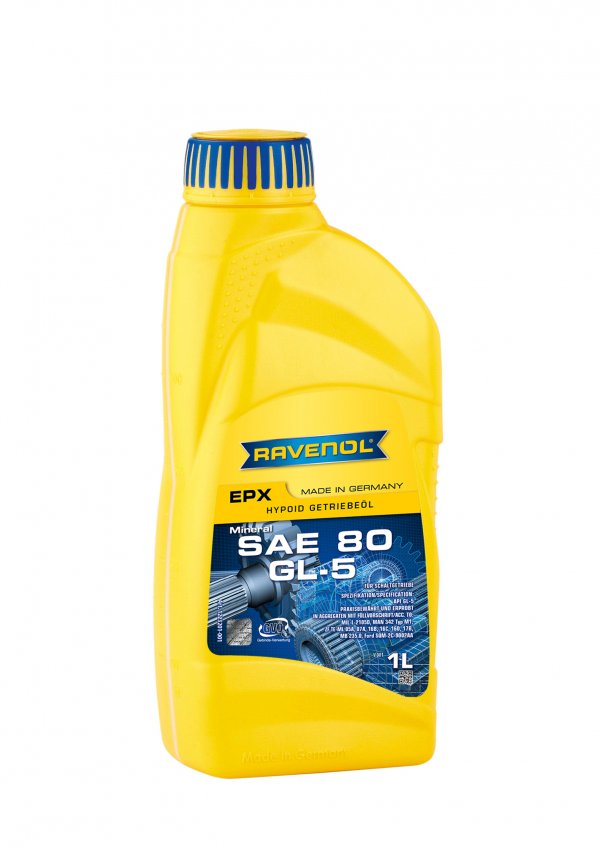

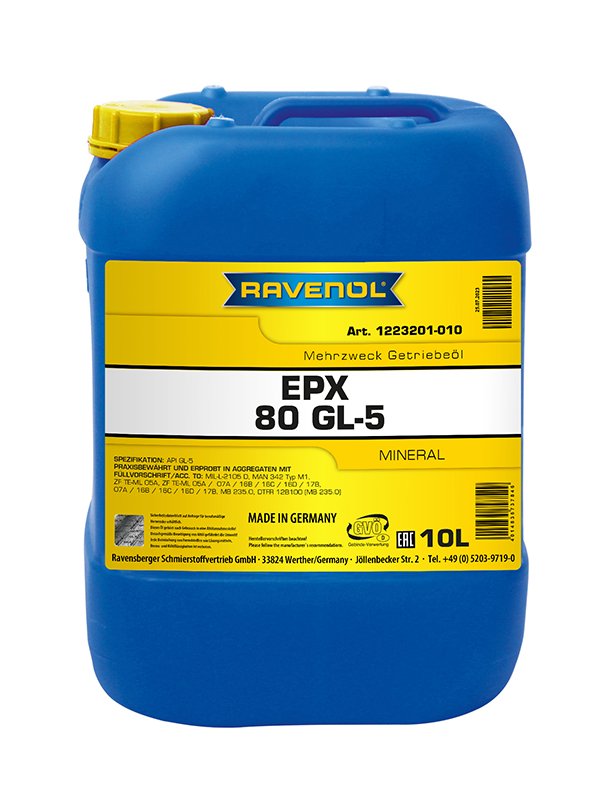

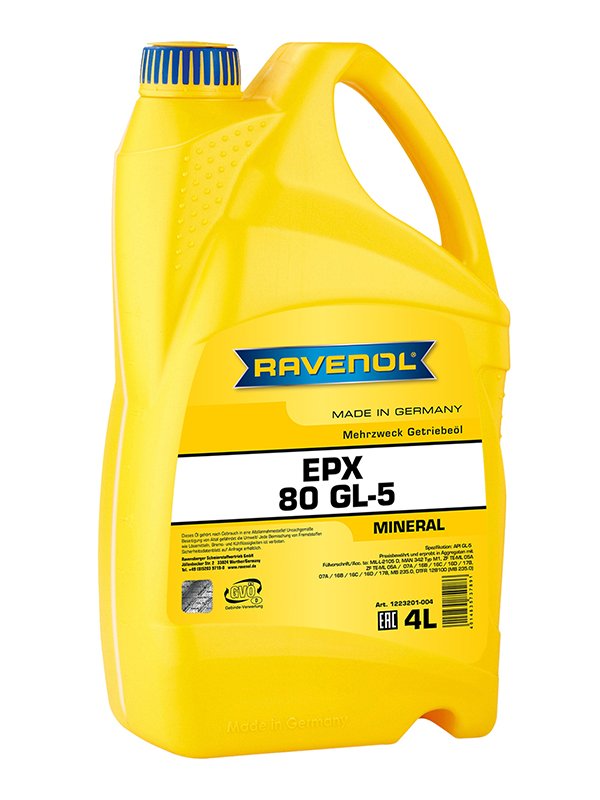

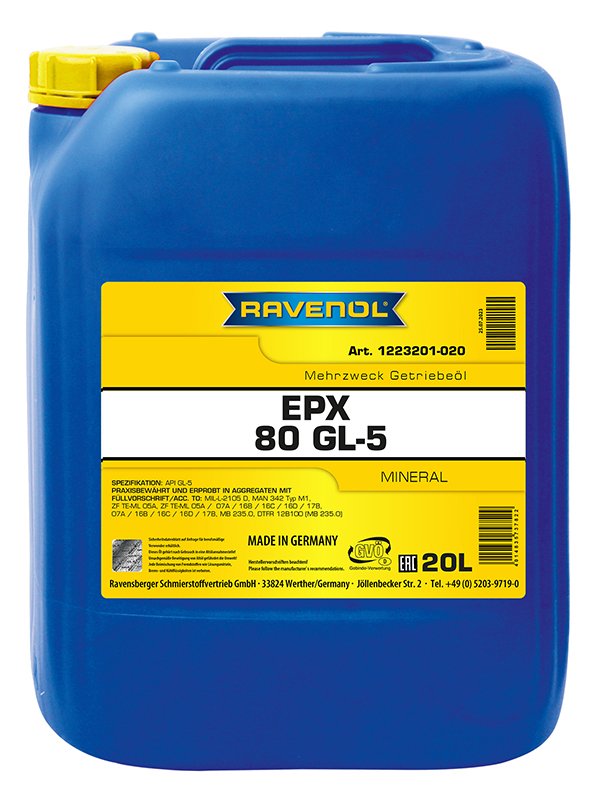

RAVENOL Getriebeoel EPX SAE 80W GL-5

Category: Gear oil for manual transmissions and drive axis
Item number: 1223201
Viscosity: 80
Specification: API GL-5
Oil type: Mineral

RAVENOL Getriebeoel EPX SAE 80 GL 5 was developed to eliminate seasonal transmission oil changes.

RAVENOL Getriebeoel EPX SAE 80 GL 5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Application Note

RAVENOL Getriebeoel EPX SAE 80 GL 5 is compatible with all name brand transmission oils. No “flushing” required when switching to RAVENOL Getriebeoel EPX SAE 80 GL 5

Use RAVENOL Getriebeoel EPX SAE 80 GL 5 in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.

Characteristics

  • Optimal cold flow property
  • Outstanding wear protection even with short trips in winter
  • High pressure stable lubrication film, thus outstanding wear protection under any stress
  • Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil
  • Outstanding shearing stability
  • Excellent oxidation stability, no foaming
  • No oil thickening or deposits
  • Extraordinary ageing stability
  • Excellent viscosity-temperature properties
  • Effective wear protection
  • Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
  • Neutral to sealants, transmissions stay tight, no oil loss

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³882,0EN ISO 12185
ColourgelbbraunVISUELL
Viscosity at 100 °Cmm²/s14,3DIN 51562-1
Viscosity at 40 °Cmm²/s130,3DIN 51562-1
Viscosity Index VI108DIN ISO 2909
Brookfield Viscosity at -26 °CmPa*s60.100ASTM D2983
Pourpoint°C-33DIN ISO 3016
Flashpoint°C222DIN EN ISO 2592
Copper Strip Test at 121 °C1bASTM D130

All indicated data are approximate values and are subject to the commercial fluctuations.
