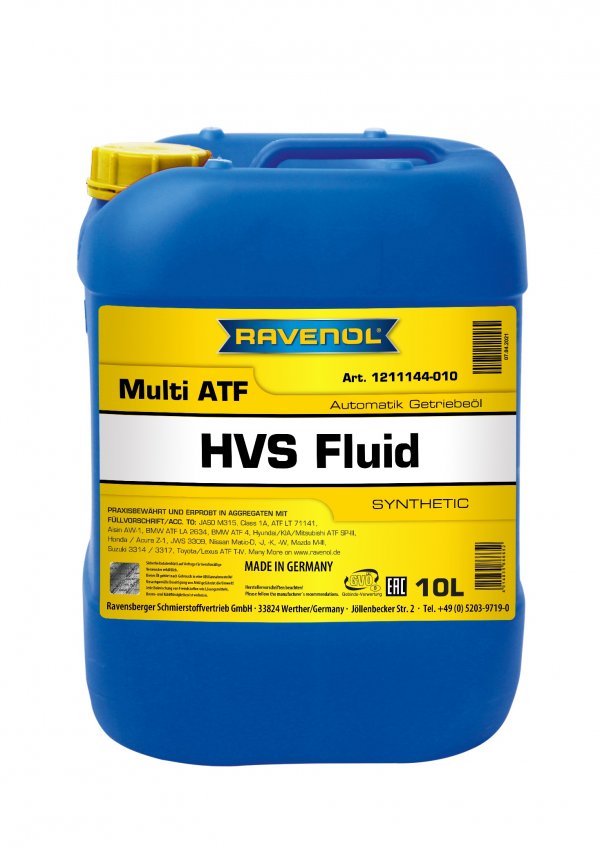

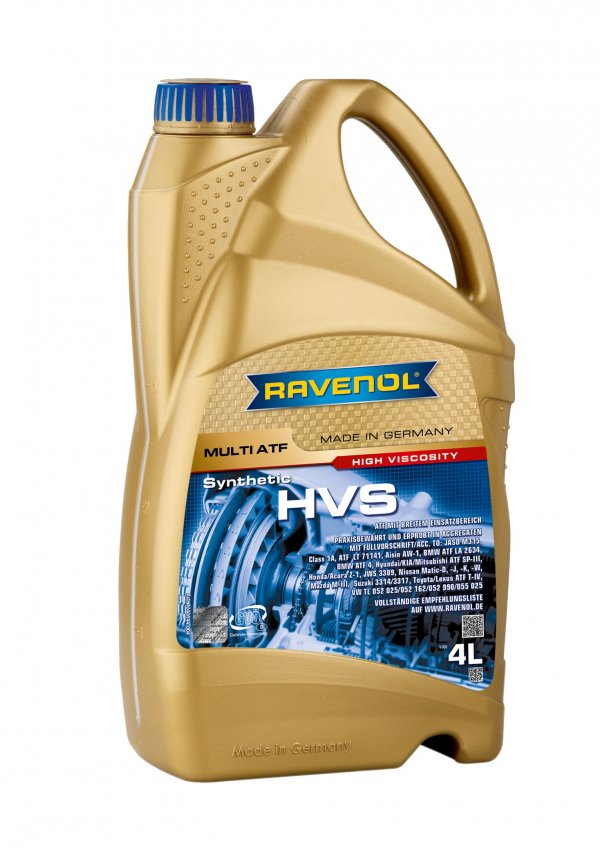

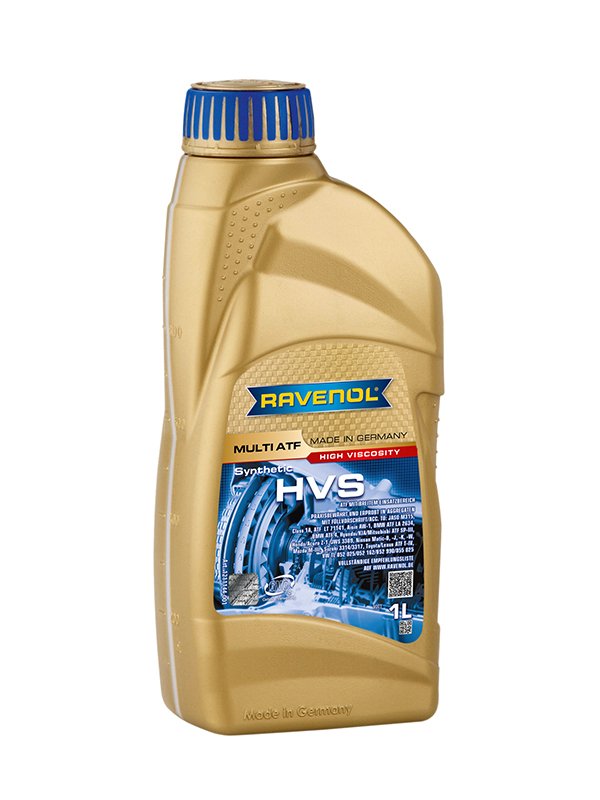

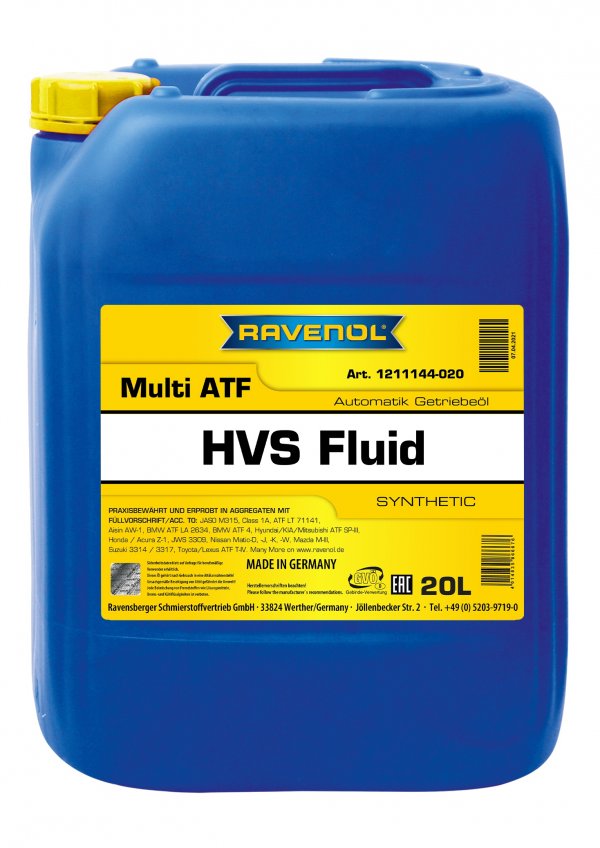

RAVENOL Multi ATF HVS Fluid

Category: Gear oil for automatic transmissions
Item number: 1211144
Oil type: Synthetic
Application: Passenger car, Truck

RAVENOL Multi ATF HVS Fluid is a synthetic multi-function automatic transmission oil ATF based on highly developed synthesis technology for longest change intervals for automatic transmissions and manual transmissions, in torque converters and numerous power steering systems.

RAVENOL Multi ATF HVS Fluid is suitable for maximum change intervals in automatic transmissions, steering and clutch systems, hydraulics and power take-offs of cars and commercial vehicles when oil with high viscosity is required.

Application Note

RAVENOL Multi ATF HVS Fluid is a product with a very wide manufacturer coverage and can be used in almost all conventional automatic transmissions with shift groups.

Not suitable for CVT automatic transmissions.

RAVENOL Multi ATF HVS Fluid is an automatic transmission fluid for longest oil change intervals.

RAVENOL Multi ATF HVS Fluid can be used as a refill oil in a wide range of applications to meet the requirements of Ford, GM, Toyota, Honda, Nissan, Hyundai, KIA, BMW, Mercedes, Volvo, VW, Audi and others. It will be used if no suitable original oil or RAVENOL Professional Line oil is available. Observe the manufacturer's instructions.

Multi ATFs generally only meet the required specifications, e.g. the minimum technical requirements for an ATF. For that reason they are not suitable for permanent use. Multi ATFs should therefore only be used as a temporary replacement or for refilling if the special gear oil is not available for your application. For continuous operation we recommend the use of our RAVENOL ATF Professional Line gear oils. These special oils are optimally formulated for individual automatic transmissions. They exceed the minimum requirements / specifications.

Characteristics

  • Very good lubricity even at low temperatures in winter
  • A high, stable viscosity index
  • Very low pour point
  • Very good oxidation stability
  • Protection against wear, corrosion and foaming
  • Well-coordinated friction properties
  • Neutral behavior towards sealing materials
  • Neutral behavior due to inhibition against non-ferrous metals

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³845,0EN ISO 12185
ColourrotVISUELL
Viscosity at 100 °Cmm²/s7,0DIN 51562-1
Viscosity at 40 °Cmm²/s37,1DIN 51562-1
Viscosity Index VI153DIN ISO 2909
Brookfield Viscosity at -40 °CmPa*s18.930ASTM D2983
Pourpoint°C-45DIN ISO 3016
Flashpoint°C230DIN 51757
Copper Strip Test at 121 °C1 bASTM D130

All indicated data are approximate values and are subject to the commercial fluctuations.
