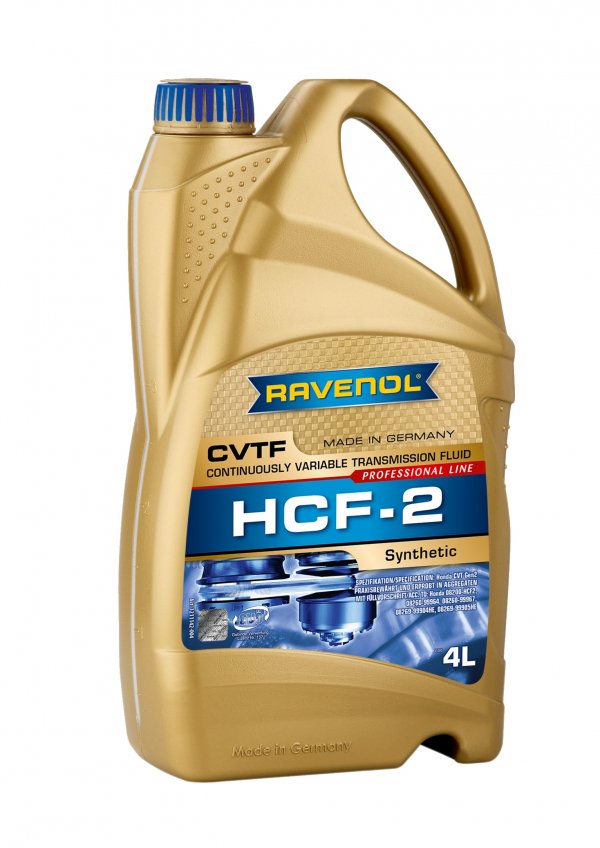

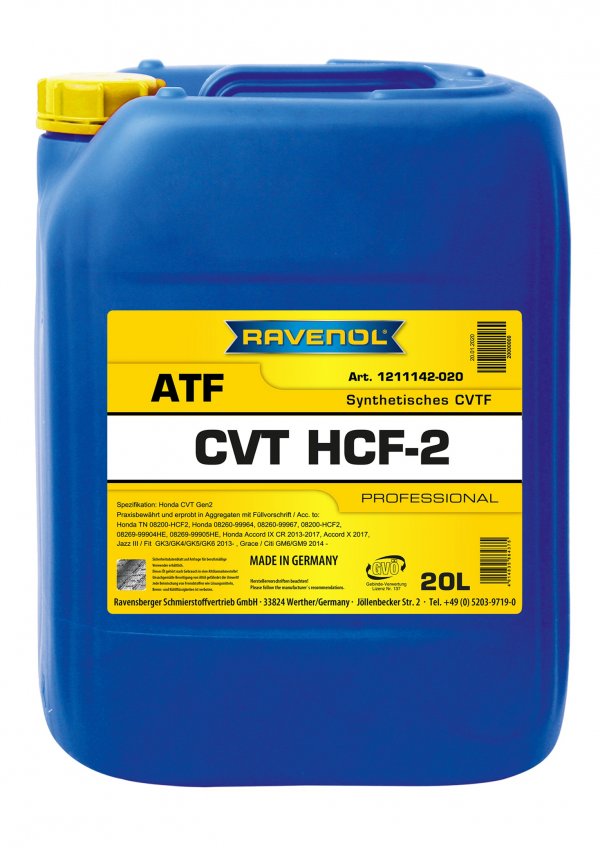

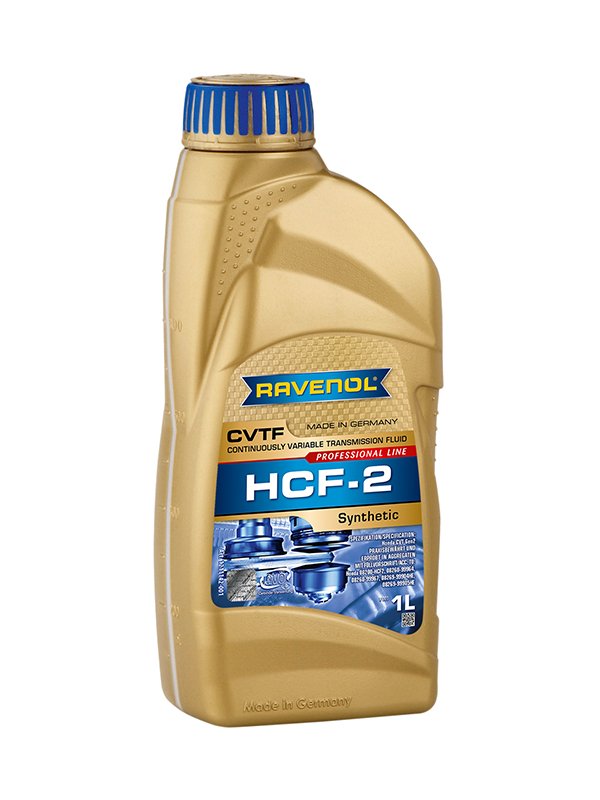

RAVENOL CVT HCF-2 Fluid

Category: Gear oil for automatic transmissions
Item number: 1211142
Specification: Honda CVT Gen2
Oil type: Synthetic
Application: Passenger car

RAVENOL CVT HCF-2 Fluid is a synthetic CVT (Continuously Variable Transmission) fluid designed specifically for second-generation CVT transmissions.

RAVENOL CVT HCF-2 Fluid is based on high quality base oils with Polyalphaolefin (PAO) and a special additive and inhibition, which ensure proper functioning of the gearbox.

RAVENOL CVT HCF-2 Fluid is a synthetic CVT fluid with low viscosity for Honda CVT automatic transmissions.

RAVENOL CVT HCF-2 Fluid guarantees a high viscosity index, excellent protection against high pressure, friction and wear and optimal power transmission.

Application Note

RAVENOL CVT HCF-2 Fluid is designed for use in Steel Belt Continuously Variable Transmission (CVT) transmissions, especially for Honda CVT Gen2 transmissions.

Use RAVENOL CVT HCF-2 Fluid only in vehicles with a gearbox oil filler cap marked with a Honda HCF-2 sticker, or for which the user manual specifically states the use of this gear fluid (if applicable, refer to OEM part number 08200-HCF2).

Characteristics

  • Very good lubricity even at low temperatures in winter
  • Very high, stable viscosity index
  • Very good oxidation stability
  • Excellent protection against high pressure, friction and wear, corrosion and foaming
  • Neutral behavior towards sealing materials

Technical Product Data

PropertyUnitDataAudit
ColourgelbbraunVISUELL
Seq. I at 24 °Cml/ml0/0ASTM D892
Seq. II at 93,5 °Cml/ml0/0ASTM D892
Seq. III at 24 °C after 93,5 °Cml/ml0/0ASTM D892
Viscosity at 100 °Cmm²/s6,95DIN 51562-1
Viscosity at 40 °Cmm²/s24,95DIN 51562-1
Viscosity Index VI265DIN ISO 2909
VKA Four Ball Test (Wear)mm0,5DIN 51350-3
VKA Four Ball Test (EP Extreme Pressure)N1800 / 2000DIN 51350-3
Brookfield Viscosity at -40 °CmPa*s2.520ASTM D2983
Copper Strip Test at 150 °C1bASTM D130
Density at 20 °Ckg/m³853,0EN ISO 12185
Flashpoint (CC)°C180DIN EN ISO 2592
Pourpoint°C-54DIN ISO 3016

All indicated data are approximate values and are subject to the commercial fluctuations.

RAVENOL special transmission fluids are special developments for special gears and cannot be selected on the basis of technical parameters (viscosity, etc.). Therefore the decision was made not to give technical data. Please note: RAVENOL special transmission fluid is exclusively to apply under the original number, as indicated in the product information. If you are unsure about the right transmission fluid, ask your workshop or dealership for advice on the transmission type and OEM original number or ask our experts, making sure to state the VIN code (vehicle identification number) of your vehicle. Misapplication of RAVENOL special transmission fluid can lead to malfunction of the transmission shifting problems, increased fuel consumption, unwanted slip behavior, etc. and cause the failure of the transmission. Ravensberger Schmierstoffvertrieb GmbH is not liable for transmission failures in case of wrong selection of RAVENOL special transmission fluid.
