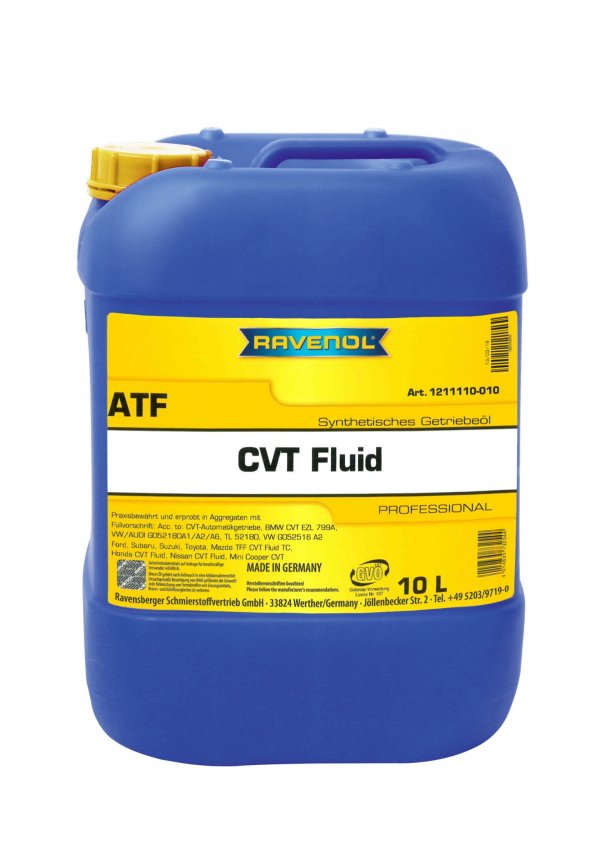

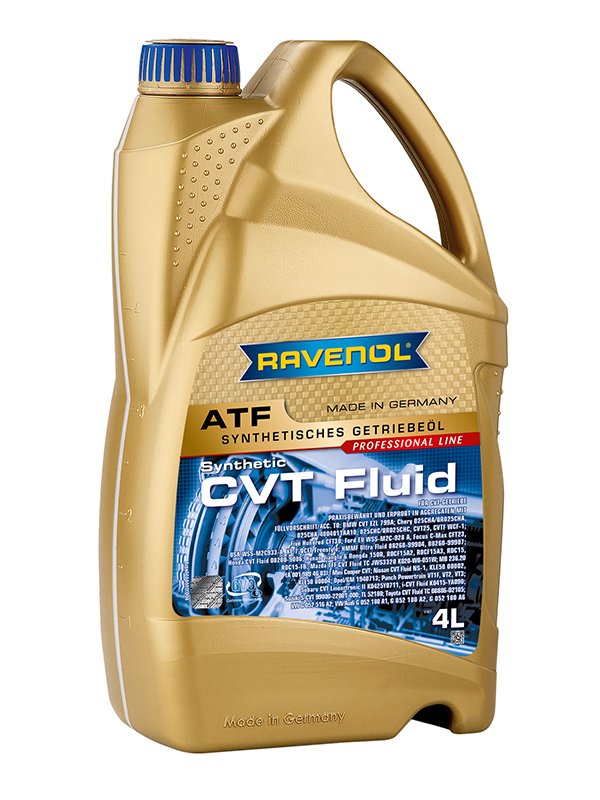

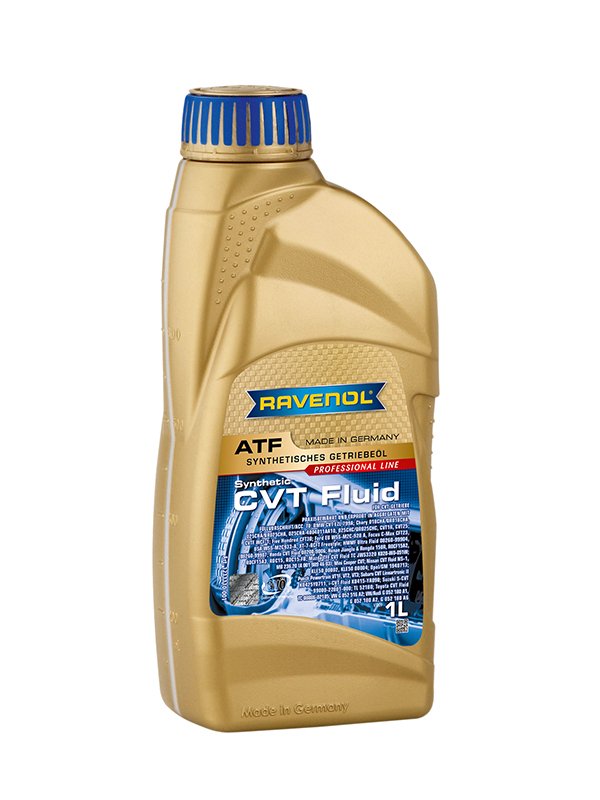

RAVENOL CVT Fluid is a synthetic ATF for the latest generation of CVT transmission.
RAVENOL CVT Fluid guarantees an optimum of power transmission.
RAVENOL CVT Fluid is based on high-quality hydrocrack oils with special additives and inhibition to ensure the proper operation of the automatic transmission.
Application Note
RAVENOL CVT Fluid was developed for use in CVT transmission (Steel Belt Continuously Variable Transmission).
RAVENOL CVT Fluid ensures a stable viscosity under high mechanical stress in the transmission elements (push belt).
Characteristics
- Very good lubricating ability even at low temperatures in winter
- A high, stable viscosity index
- Very low pour point
- Very good oxidation stability
- Protection against corrosion and foam formation
- Good balanced coefficient of friction
- Neutral behaviour towards sealing materials
- Neutral behaviour by inhibition to non-ferrous metals
Technical Product Data
Property | Unit | Data | Audit |
---|---|---|---|
Density at 20 °C | kg/m³ | 846,0 | EN ISO 12185 |
Colour | gelbbraun | VISUELL | |
Viscosity at 100 °C | mm²/s | 7,3 | DIN 51562-1 |
Viscosity at 40 °C | mm²/s | 35,5 | DIN 51562-1 |
Viscosity Index VI | 175 | DIN ISO 2909 | |
Pourpoint | °C | -48 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
RAVENOL special transmission fluids are special developments for special gears and cannot be selected on the basis of technical parameters (viscosity, etc.). Therefore the decision was made not to give technical data. Please note: RAVENOL special transmission fluid is exclusively to apply under the original number, as indicated in the product information. If you are unsure about the right transmission fluid, ask your workshop or dealership for advice on the transmission type and OEM original number or ask our experts, making sure to state the VIN code (vehicle identification number) of your vehicle. Misapplication of RAVENOL special transmission fluid can lead to malfunction of the transmission shifting problems, increased fuel consumption, unwanted slip behavior, etc. and cause the failure of the transmission. Ravensberger Schmierstoffvertrieb GmbH is not liable for transmission failures in case of wrong selection of RAVENOL special transmission fluid.
