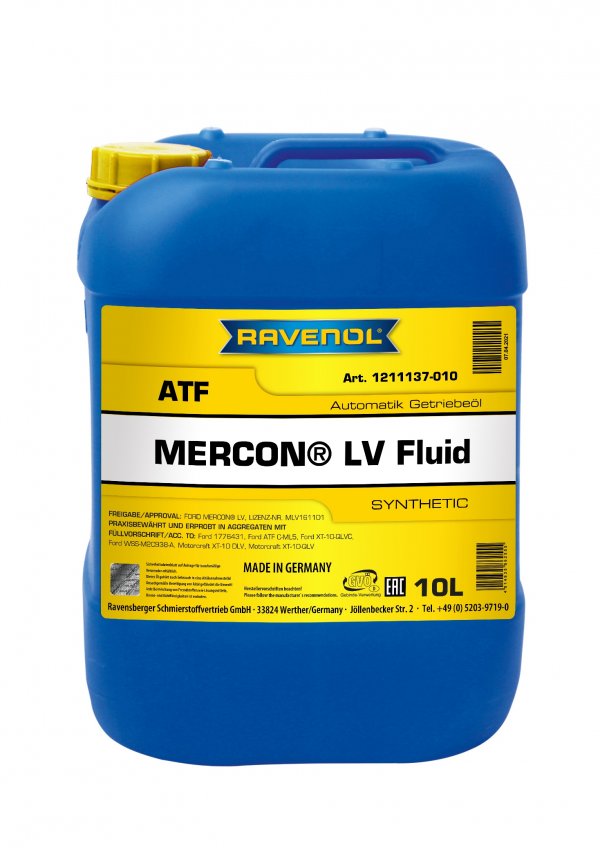

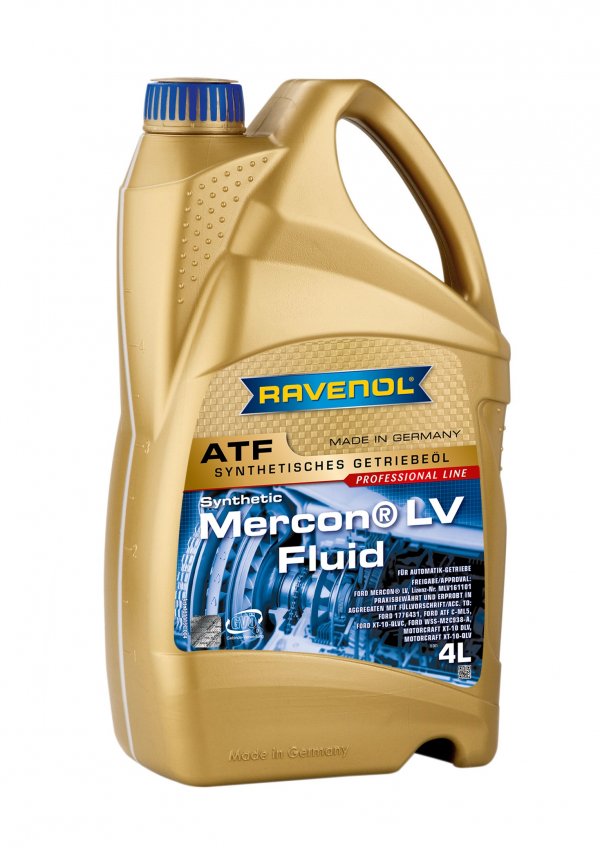

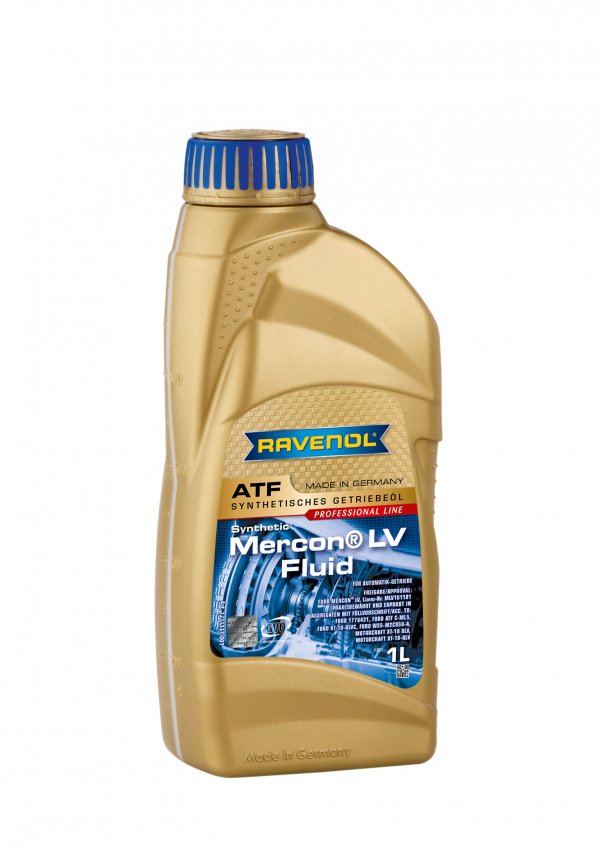

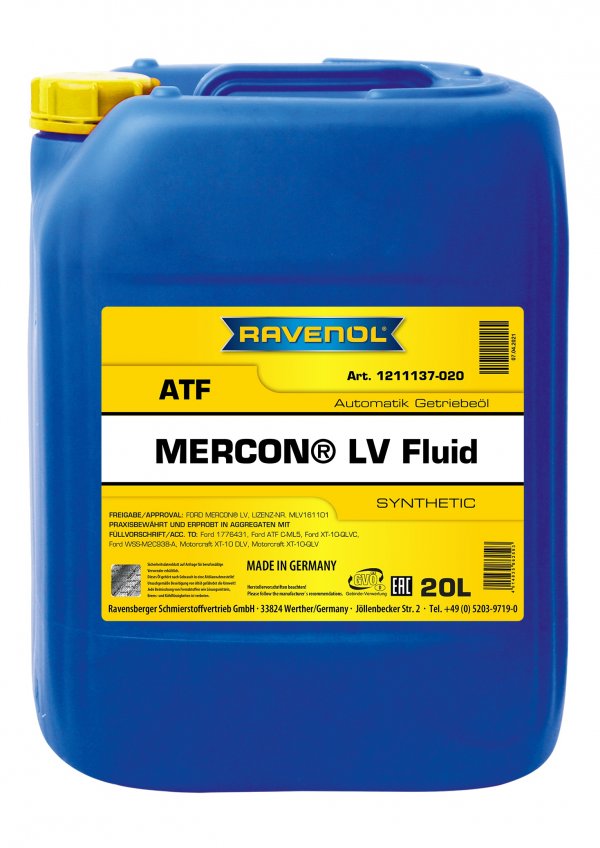

RAVENOL ATF MERCON® LV Fluid

Category: Gear oil for automatic transmissions
Item number: 1211137
Oil type: Synthetic
Application: Passenger car

RAVENOL ATF MERCON® LV Fluid is synthetic ATF Automatic Transmission Fluid, which was specially developed for automatic transmission of Ford. The special formulation ensures a long service life of the lubricant and provides excellent protection against abrasion and wear.

RAVENOL ATF MERCON® LV Fluid meets the relevant requirements of the gear oil specifications from Ford.

Application Note

RAVENOL ATF MERCON® LV Fluid is used when the automatic transmission oil specification MERCON® LV is required.

RAVENOL ATF MERCON® LV Fluid meets relevant requirements of the gear oil specifications from Ford for automatic transmission TorqShift 6R140 (Powerstroke from 2010), TorqShift 5R110 (Ford Super Duty 2003-2009), 4R75W / E (from 2009), 6R80, 4F27E, 6F50N / 55N (from 2010), and 6F35N HF35 hybrid.

Characteristics

  • Very good lubricity also by low temperatures
  • High, stable viscosity index
  • Very good oxidation stability
  • Excellent wear, corrosion and foaming protection
  • Excellent friction constant
  • High thermal and oxidative stability
  • Excellent cooling capacity
  • Improved shear stability

Technical Product Data

PropertyUnitDataAudit
ColourrotVISUELL
Foaming tendency (Seq. I, II, III)min.0/0, 0/0, 0/0ASTM D892
Viscosity at 100 °Cmm²/s5,9DIN 51562-1
Viscosity at 40 °Cmm²/s29,2DIN 51562-1
Viscosity Index VI150DIN ISO 2909
Brookfield Viscosity at -40 °CmPa*s9.010ASTM D2983
Copper Strip Test at 121 °C1bASTM D130
Density at 20 °Ckg/m³840,0EN ISO 12185
Flashpoint°C224DIN EN ISO 2592
Pourpoint°C-51DIN ISO 3016

All indicated data are approximate values and are subject to the commercial fluctuations.

RAVENOL special transmission fluids are special developments for special gears and cannot be selected on the basis of technical parameters (viscosity, etc.). Therefore the decision was made not to give technical data. Please note: RAVENOL special transmission fluid is exclusively to apply under the original number, as indicated in the product information. If you are unsure about the right transmission fluid, ask your workshop or dealership for advice on the transmission type and OEM original number or ask our experts, making sure to state the VIN code (vehicle identification number) of your vehicle. Misapplication of RAVENOL special transmission fluid can lead to malfunction of the transmission shifting problems, increased fuel consumption, unwanted slip behavior, etc. and cause the failure of the transmission. Ravensberger Schmierstoffvertrieb GmbH is not liable for transmission failures in case of wrong selection of RAVENOL special transmission fluid.
