Category:
Gear oil for automatic transmissions
Item number:
1213105
Oil type:
Mineral

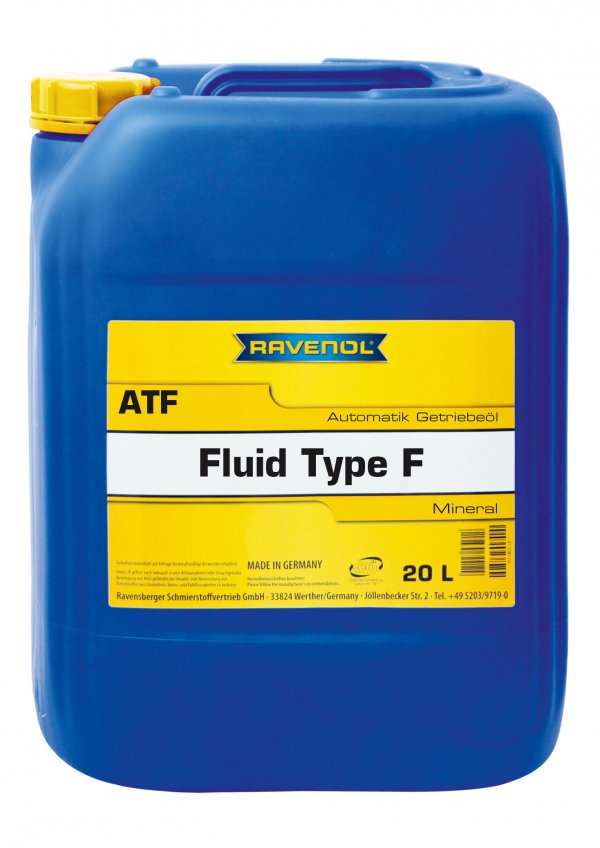

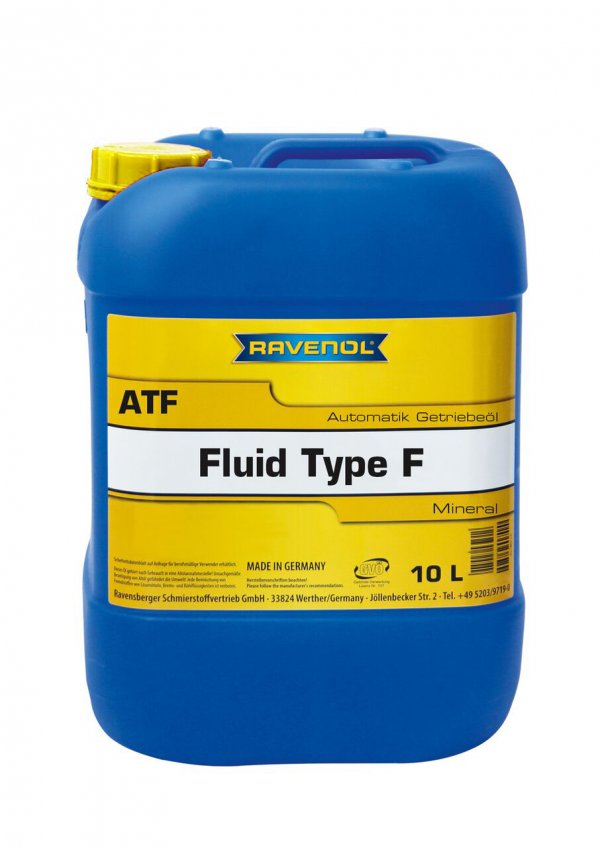

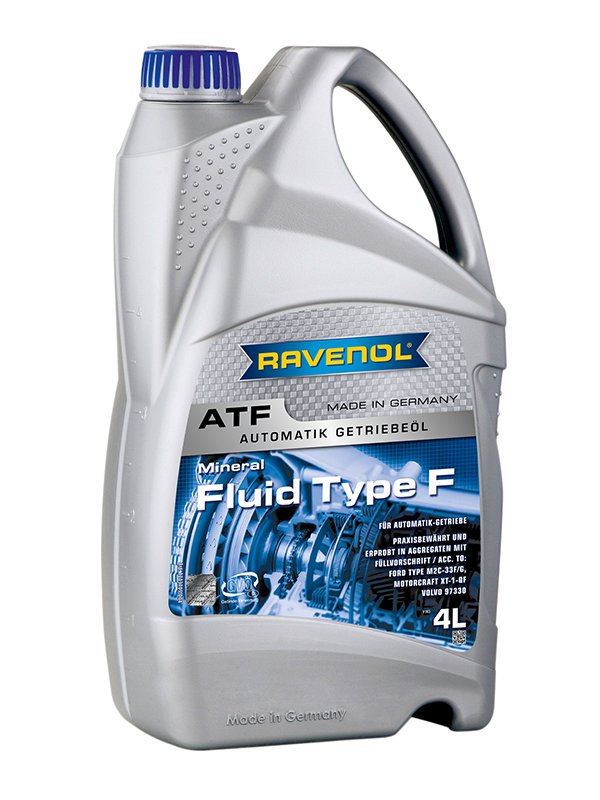

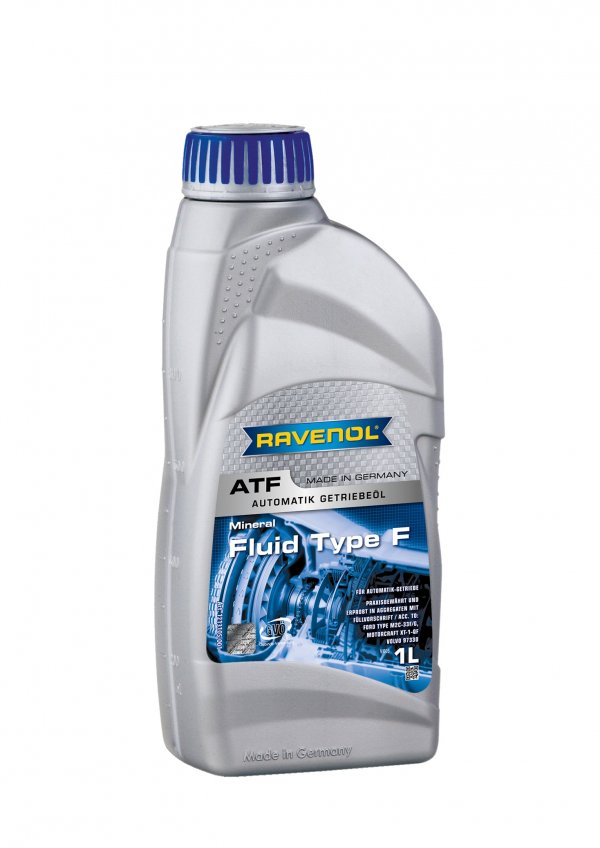

RAVENOL ATF Fluid Type F is a universal ATF (automatic transmission fluid) for use as specialty transmission oil for Ford, Borg Wagner and Volvo.
RAVENOL ATF Fluid Type F is designed based on refined base oils with a special additive treatment and inhibition ensuring trouble-free function.
Application Note
RAVENOL ATF Fluid Type F is suitable for use as speciality transmission oil for Ford, Borg Wagner and Volvo.
Use RAVENOL ATF Fluid Type F according to aggregate manufacturer operating instructions in: Automatic transmissions, fluid turbo coupling, servo clutches and other hydrostatic and hydrodynamic systems.
Characteristics
- Universal use, therefore minimising the risk of confusion and making stock-keeping easy.
- Good lubricating ability even in low temperatures during winter.
- Stable lubricating film under extreme stress in midsummer resulting in comparatively low wear throughout the change interval.
- Excellent viscosity-temperature properties.
- High thermal resilience.
- Non-foaming even in extreme conditions.
- Reliable protection against wear, sludge, corrosion and adhesion.
- FZG test: Reaches failure load stage 12 before and after shearing.
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 848,0 | EN ISO 12185 |
| Colour | rot | VISUELL | |
| Viscosity at 100 °C | mm²/s | 7,3 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 34,3 | DIN 51562-1 |
| Viscosity Index VI | 185 | DIN ISO 2909 | |
| Pourpoint | °C | -45 | DIN ISO 3016 |
| Flashpoint | °C | 210 | DIN EN ISO 2592 |
All indicated data are approximate values and are subject to the commercial fluctuations.
