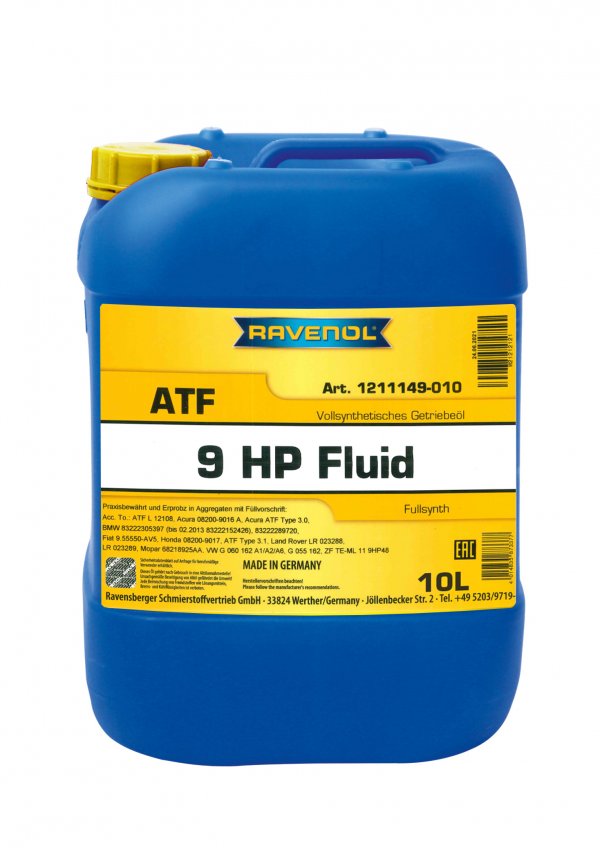

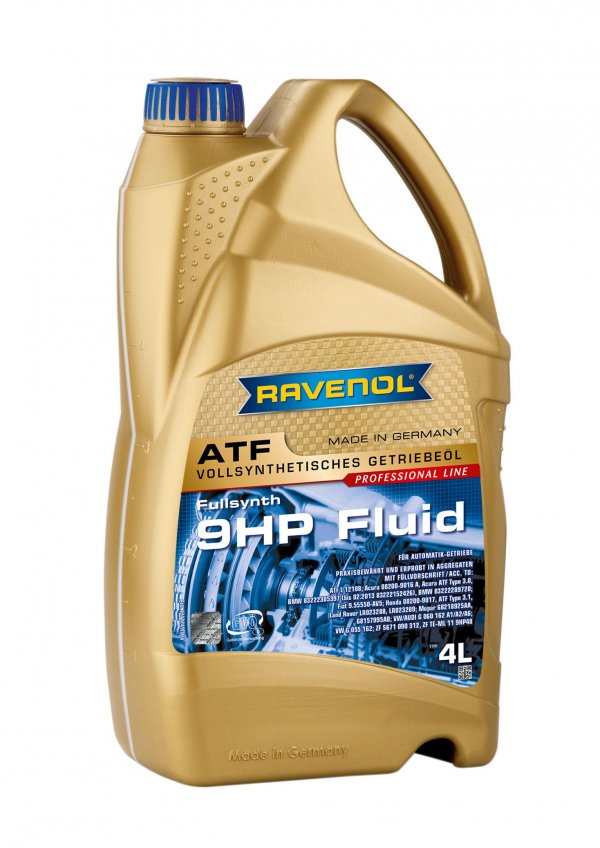

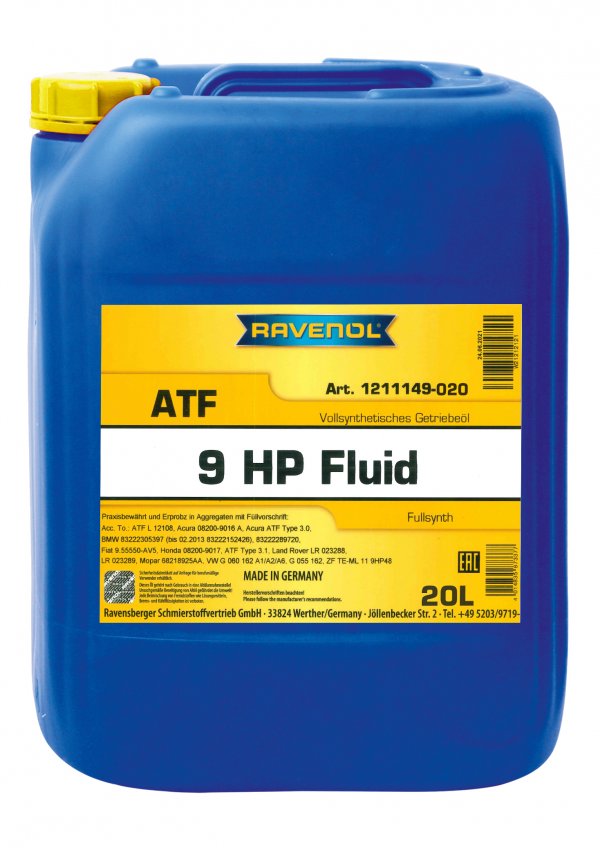

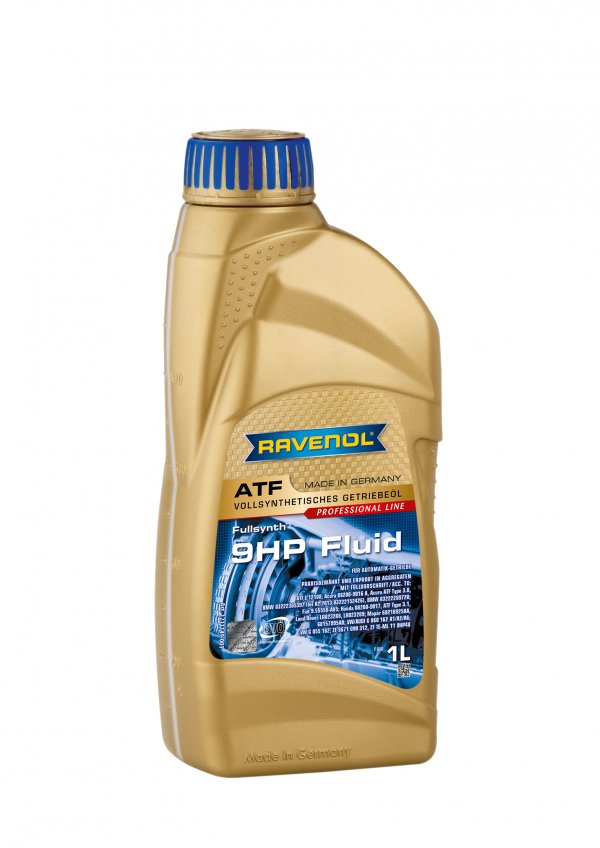

RAVENOL ATF 9HP Fluid

Category: Gear oil for automatic transmissions
Item number: 1211149
Oil type: Full synthetic

RAVENOL ATF 9HP Fluidis a full synthetic ATF (Automatic Transmission Fluid), designed on the basis of PAO (Poly-alpha-olefin) with a special additivation and inhibition, which ensure a proper function of the automatic transmission.

RAVENOL ATF 9HP Fluid is an automatic transmission fluid (ATF) of the latest generation for all 9 stroke automatic transmissions of ZF. It guarantees maximum wear protection in any operating condition.

RAVENOL ATF 9HP Fluid is green coloured.

Application Note

RAVENOL ATF 9HP Fluid is suitable for use in automatic ZF transmission of 9HP-Series, such as 9HP48. Please observe OEM Part Numbers and their regulations!

Characteristics

  • Very good lubricating ability even at low temperatures in winter
  • A high, stable viscosity index
  • Very good oxidation stability
  • Protection against wear, corrosion and foam formation
  • Good balanced coefficient of friction
  • A high thermal and oxidative stability
  • An excellent cooling capacity

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³840EN ISO 12185
ColourgrünVISUELL
Viscosity at 100 °Cmm²/s5,5DIN 51562-1
Viscosity at 40 °Cmm²/s26,0DIN 51562-1
Viscosity Index VI160DIN ISO 2909
Brookfield Viscosity at -40 °CmPa*s5400ASTM D2983
Pourpoint°C-54DIN ISO 3016
Copper Strip Test at 121 °C1aASTM D130
Flashpoint°C208DIN EN ISO 2592

All indicated data are approximate values and are subject to the commercial fluctuations.

RAVENOL special transmission fluids are special developments for special gears and cannot be selected on the basis of technical parameters (viscosity, etc.). Therefore the decision was made not to give technical data. Please note: RAVENOL special transmission fluid is exclusively to apply under the original number, as indicated in the product information. If you are unsure about the right transmission fluid, ask your workshop or dealership for advice on the transmission type and OEM original number or ask our experts, making sure to state the VIN code (vehicle identification number) of your vehicle. Misapplication of RAVENOL special transmission fluid can lead to malfunction of the transmission shifting problems, increased fuel consumption, unwanted slip behavior, etc. and cause the failure of the transmission. Ravensberger Schmierstoffvertrieb GmbH is not liable for transmission failures in case of wrong selection of RAVENOL special transmission fluid.
