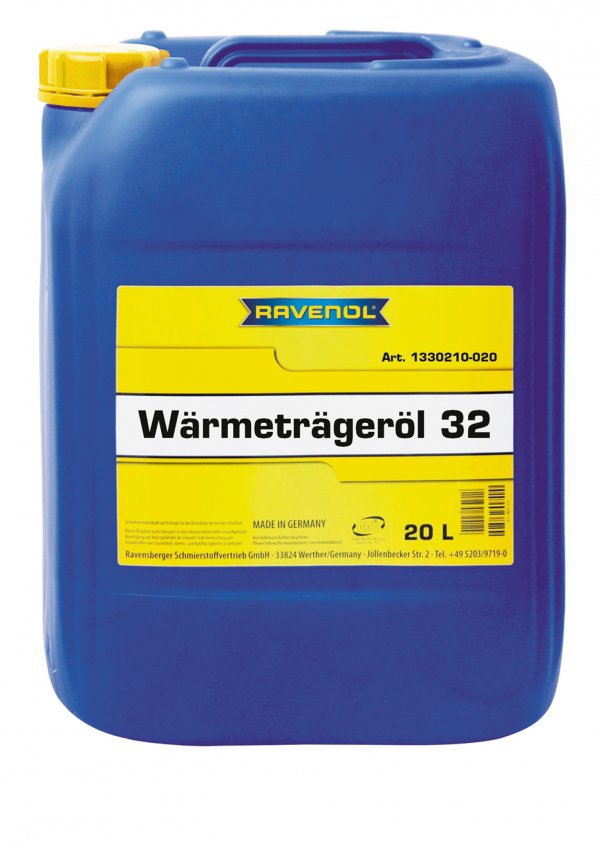

RAVENOL Wärmeträgeröl 32

Category: Industrial oil
Item number: 1330210
Viscosity: 32
Oil type: Mineral
Application: Industry

RAVENOL Waermetraegeroel 32 is a heat transfer oil made with a mineral-oil basis, which is suitable for the industrial operation of closed heat transfer systems. Its high specific thermal conductivity combined with a high thermal stability, as well as a high resistance to oxidation, are just some of the many quality features that make this product an excellent heat transfer oil.

Application Note

RAVENOL Waermetraegeroel 32 is especially suitable for use in closed heating systems. The maximum flow temperature should not exceed 320 °C. The maximum oil film temperature is 350°C. The oil should be prevented from coming into direct contact with the ambient air, as this would speed up the ageing process. We recommend cleaning the entire heat transfer system before each new filling. A system that is not cleaned appropriately for maintenance will not achieve optimal efficiency.

Characteristics

  • A stable viscosity behavior
  • A high specific thermal conductivity
  • High oxidation stability
  • Good corrosion protection
  • Excellent aging resistance

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³848,0EN ISO 12185
ColourgelbVISUELL
Viscosity at 100 °Cmm²/s12,1DIN 51562-1
Viscosity at 40 °Cmm²/s32,0DIN 51562-1
Viscosity Index VI121DIN ISO 2909
Pourpoint°C-30DIN ISO 3016
Flashpoint°C248DIN EN ISO 2592

All indicated data are approximate values and are subject to the commercial fluctuations.
