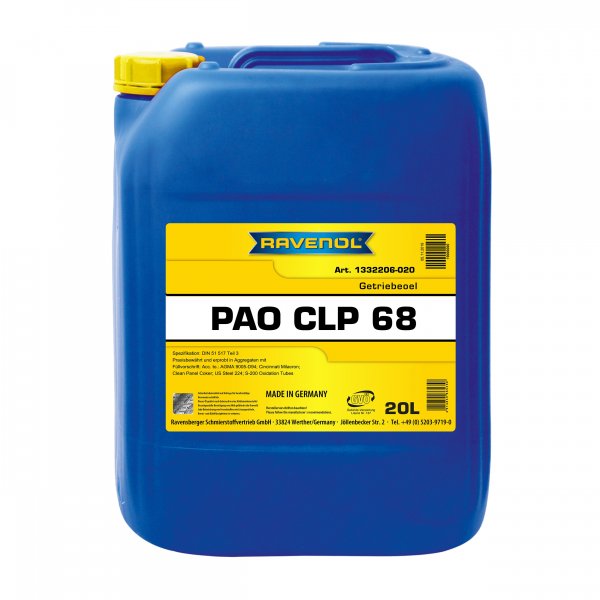

RAVENOL Getriebeoel PAO CLP 68
is premium performance, extreme pressure lubricant designed for enclosed industrial gears and bearings operating under severe load conditions and in wide extremes of temperature.
RAVENOL Getriebeoel PAO CLP 68
is formulated using PAO synthetic base oils and additive technologies to deliver excellent wear properties, outstanding extreme temperature performance for extended component and fluid life.
RAVENOL Getriebeoel PAO CLP 68
enhances gear box efficiency over a wide temperature range and can reduce power consumption.
Application Note
RAVENOL Getriebeoel PAO CLP 68
is recommended for enclosed industrial gear drives and bearings particularly where they are operated under heavy duty conditions such as heavy loading, slow speed, shock loads and in wide extremes of temperature.The tough oil film of
RAVENOL Getriebeoel PAO CLP 68
and low coefficient of friction save energy in gearboxes. The high viscosity index of
RAVENOL Getriebeoel PAO CLP 68
means they retain their viscosity at high operating temperatures. This often allows the use of a lower ISO grade than with conventional gear oil resulting in even greater energy savings.
RAVENOL Getriebeoel PAO CLP 68
is designed to combat these conditions and will run cooler while maintaining a high lubricant film strength. For gearboxes that operate outdoors,
RAVENOL Getriebeoel PAO CLP 68
is capable of operating at temperatures as low as -30°C or below.When converting a gearbox to
RAVENOL Getriebeoel PAO CLP 68
, it is recommended to be cleaned and flushed first to gain the full benefit of the product.
RAVENOL Getriebeoel PAO CLP 68
operates over the temperature range from -50°C to 150°C, with simultaneous corrosion protection for colored metal parts.
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Colour | hellgelb | VISUELL | |
| Viscosity at 100 °C | mm²/s | 11,7 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 66,5 | DIN 51562-1 |
| Viscosity Index VI | 173 | DIN ISO 2909 | |
| Copper Strip Test at 150 °C | 1a | ASTM D130 | |
| Density at 20 °C | kg/m³ | 843,0 | EN ISO 12185 |
| Flashpoint (CC) | °C | 252 | DIN EN ISO 2592 |
| Pourpoint | °C | -63 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
