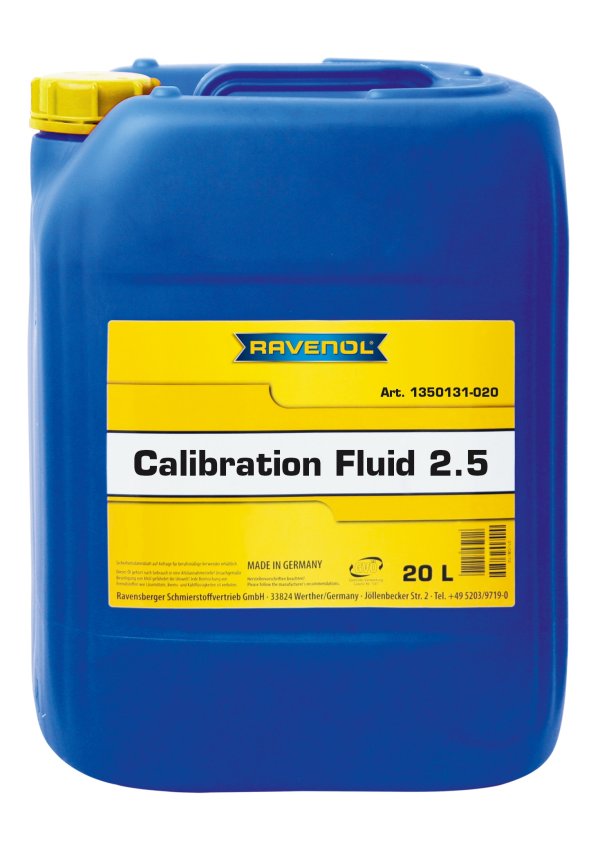

* RAVENOL Calibration Fluid 2.5

Category: Industrial oil
Item number: 1350131
Application: Industry

RAVENOL Calibration Fluid 2.5 is a low viscosity test fluid for the calibration of diesel injection pumps with a very close viscosity tolerance. It is noted for its excellent wear-, corrosion-protection and low foaming tendency. The product is also suitable for use as corrosion protection oil for the internal preservation or conservation of fuel systems from MTU.

Application Note

RAVENOL Calibration Fluid 2.5 is used as a test fluid for the calibration of diesel injection pumps from Bosch (VS 15665-OL), MTU, MAN and Volkswagen. The product is also suitable for use as corrosion preventive oil for the internal preservation or conservation of fuel systems from MTU.

Characteristics

  • Excellent wear protection
  • Excellent corrosion protection
  • Low tendency to foam

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³821EN ISO 12185
ColourfarblosVISUELL
Viscosity at 40 °Cmm²/s2,52DIN EN ISO 3104
Viscosity at 20 °Cmm²/s3,85DIN EN ISO 3104
Flashpoint°C105DIN 51757
Cloudpoint°C-28ASTM D2500
Steel corrosion0-ADIN ISO 7120
Copper strip corrosion1DIN EN ISO 2160
Corrosion test (humidity chamber)6x0ASTM D1748
Initial Boiling Point°C232DIN 51751
Final Boiling Point°C265DIN 51751

All indicated data are approximate values and are subject to the commercial fluctuations.
