Category:
Gear oil for manual transmissions and drive axis
Item number:
1250200
Oil type:
Synthetic
Application:
Motorcycle

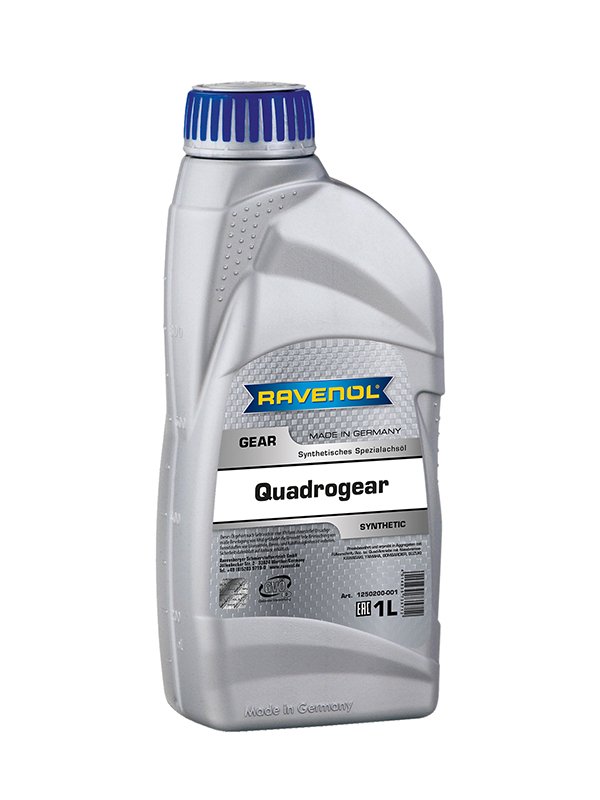

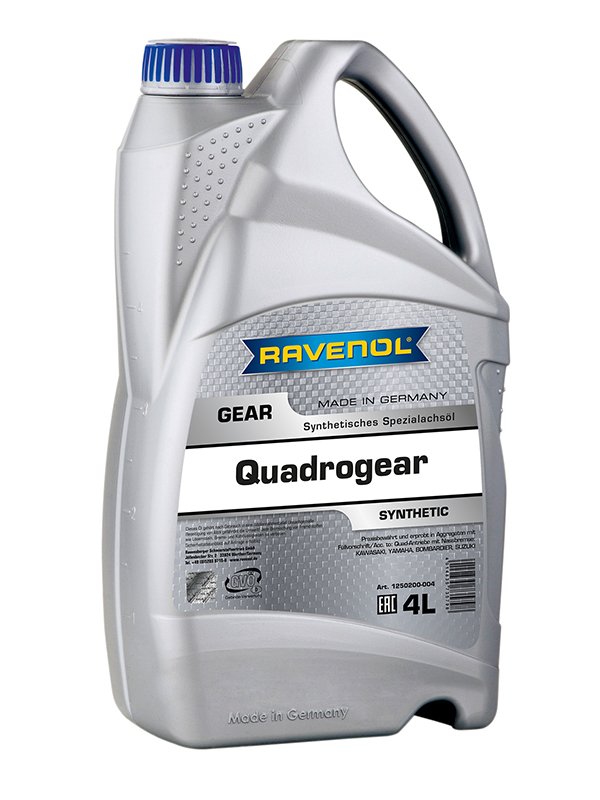

RAVENOL QUADROGEAR is synthetic special axle oil which is developed for Quads and ATV (all terrain vehicle) with integrated wet-brake.
RAVENOL QUADROGEAR is based on high quality solvent refined and synthetic base oil with a special additivation and inhibition which guarantees excellent protection against wear and corrosion.
The coefficient friction of RAVENOL QUADROGEAR has been adjusted for the use in the drive with integrated wet-brake.
Application Note
RAVENOL QUADROGEAR has been specially developed for the use in drives with integrated wet-brake. Can be used all-the-year.
Characteristics
- High oxidation stability.
- Excellent protection against rust and corrosion.
- Avoiding foam formation.
- Excellent high pressure characteristic.
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 870,0 | EN ISO 12185 |
| Colour | gelb | VISUELL | |
| Viscosity at 100 °C | mm²/s | 17,3 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 118,5 | DIN 51562-1 |
| Viscosity Index VI | 186 | DIN ISO 2909 | |
| Brookfield Viscosity at -40 °C | mPa*s | 80.000 | ASTM D2983 |
| Pourpoint | °C | -39 | DIN ISO 3016 |
| Flashpoint | °C | 202 | DIN EN ISO 2592 |
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
All indicated data are approximate values and are subject to the commercial fluctuations.
