Category:
Gear oil for manual transmissions and drive axis
Item number:
1250070
Viscosity:
80W-90
Oil type:
Mineral
Application:
Motorcycle

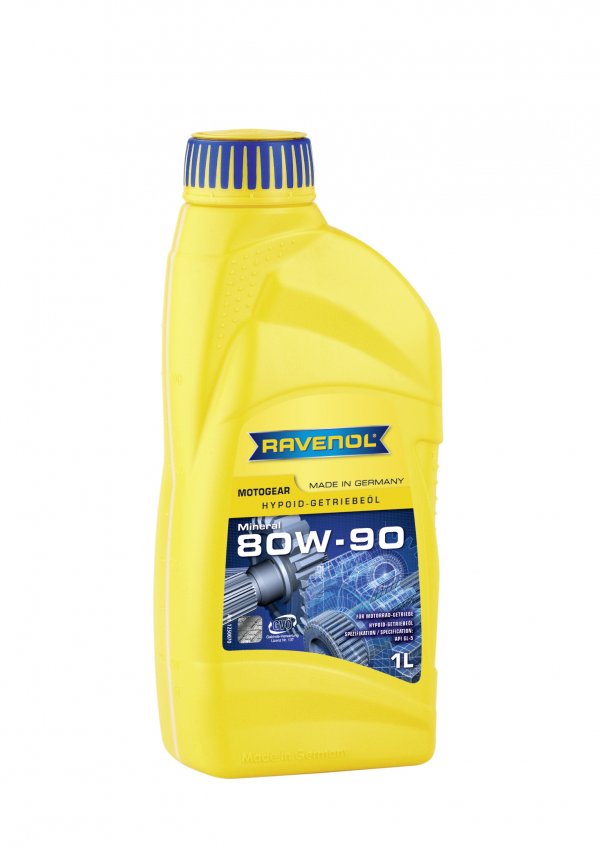

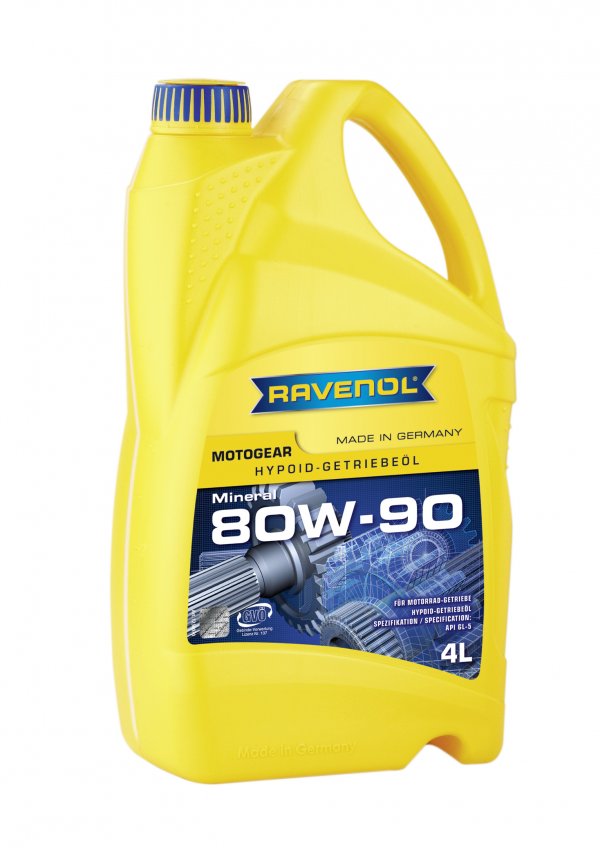

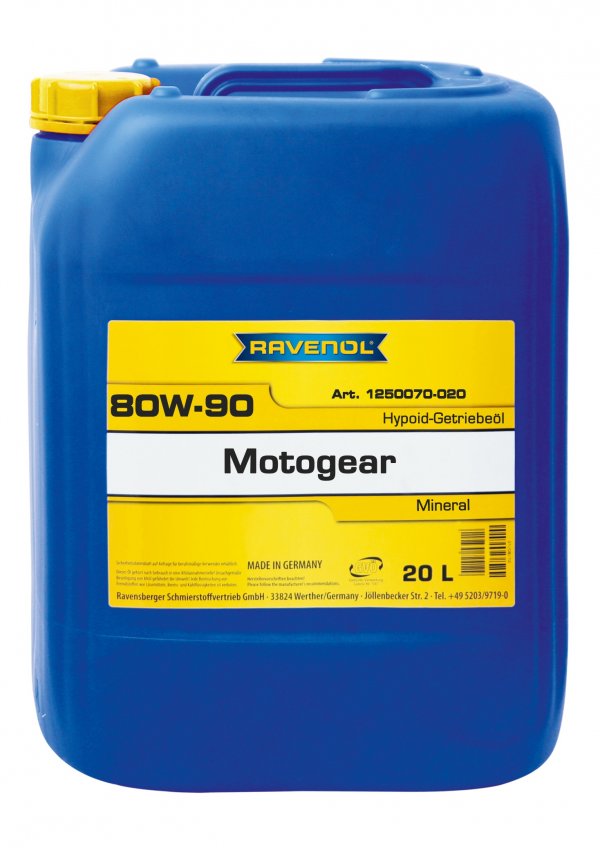

RAVENOL MOTOGEAR SAE 80W-90 GL-5 is a mineral based hypoid transmission fluid with special effective additives for manual transmissions. A high load-carrying capacity guarantees optimum gearbox lubrication even at high temperatures.
RAVENOL MOTOGEAR SAE 80W-90 GL-5 ensures a strong oil film for lubrication even under the most extreme dynamic conditions.
RAVENOL MOTOGEAR SAE 80W-90 GL-5 reduces friction, prevents wear and corrosion.
Application Note
RAVENOL MOTOGEAR SAE 80W-90 GL-5 is suitable for use in manual transmissions for 2- and 4-stroke motorcycles if oil according to SAE 80W-90 API GL-5 is specified.
Characteristics
- High pressure stable lubrication film, thus outstanding wear protection under any stress
- Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil
- Excellent oxidation stability, no foaming
- No oil thickening or deposits
- Extraordinary ageing stability
- Excellent viscosity-temperature properties
- Effective wear protection
- Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
- Neutral to sealants, transmissions stay tight, no oil loss
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 882,0 | EN ISO 12185 |
| Colour | braun | VISUELL | |
| Viscosity at 100 °C | mm²/s | 14,3 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 130,3 | DIN 51562-1 |
| Viscosity Index VI | 108 | DIN ISO 2909 | |
| Pourpoint | °C | -33 | DIN ISO 3016 |
| Flashpoint | °C | 222 | DIN EN ISO 2592 |
All indicated data are approximate values and are subject to the commercial fluctuations.
