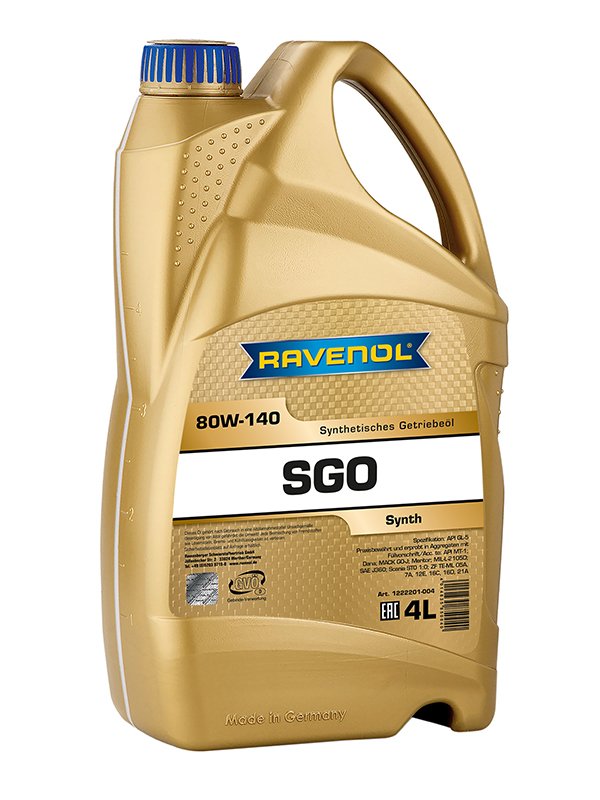

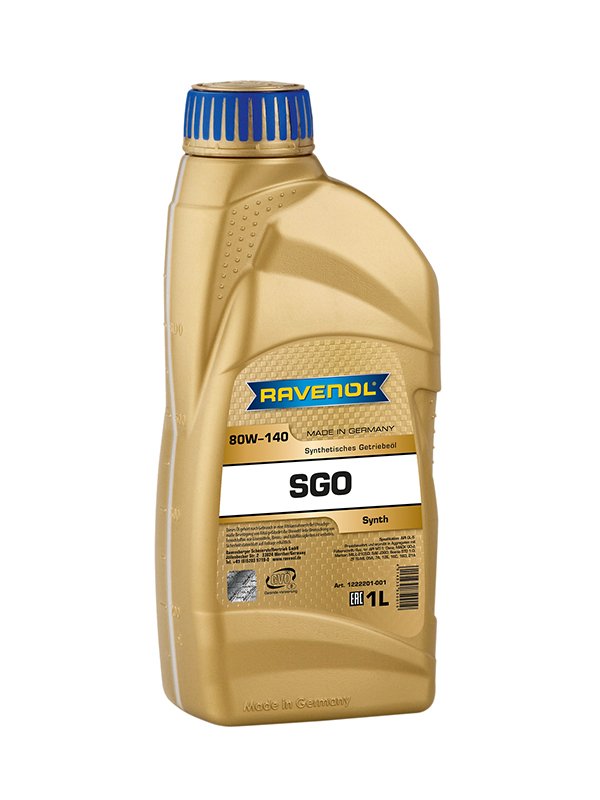

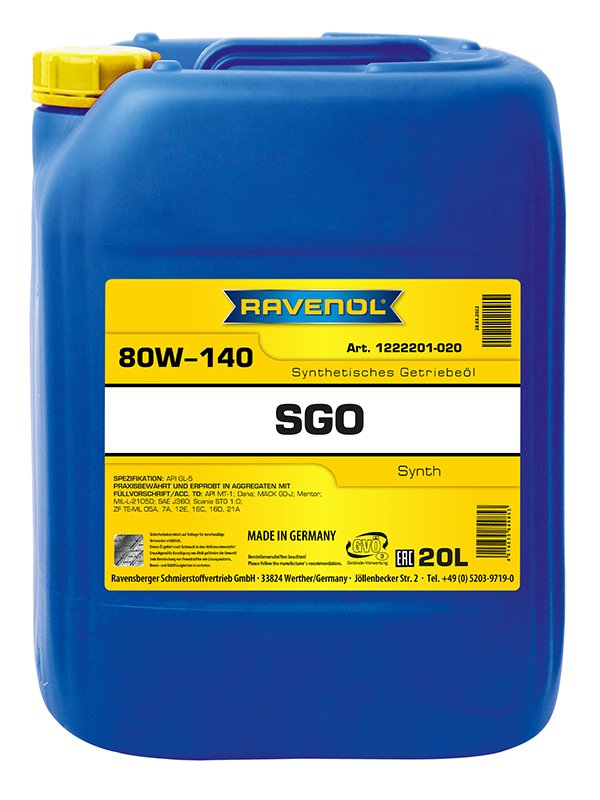

RAVENOL Getriebeoel SGO SAE 80W-140 GL-5

Category: Gear oil for manual transmissions and drive axis
Item number: 1222201
Viscosity: 80W-140
Specification: API GL-5
Oil type: Synthetic

RAVENOL SGO SAE 80W-140 GL-5 is a synthetic transmission oil for high loaded hypoid gearboxes based on high quality synthetic base oils and additives that are a balanced combination of active ingredients. Special high-pressure (EP) agents and other additives offer excellent wear protection for RAVENOL SGO SAE 80W-140 GL-5 even under severe operating conditions.

Application Note

RAVENOL SGO SAE 80W-140 GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.

Characteristics

  • A pressure-resistant lubricating film, excellent high-pressure (EP) properties
  • High viscosity index
  • Excellent oxidation stability
  • An exceptional viscosity-temperature behavior
  • A low pour point
  • Excellent protection against rust and corrosion
  • Wear-resistant effect
  • Good air separation capacity, no foam formation

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³850,0EN ISO 12185
ColourhellgelbVISUELL
Viscosity at 100 °Cmm²/s27,5DIN 51562-1
Viscosity at 40 °Cmm²/s205,1DIN 51562-1
Viscosity Index VI171DIN ISO 2909
Brookfield Viscosity at -12 °CmPa*s32.000ASTM D2983
Pourpoint°C-33DIN ISO 3016
Flashpoint°C202DIN EN ISO 2592
Copper Strip Test at 121 °C1aASTM D130

All indicated data are approximate values and are subject to the commercial fluctuations.
