Category:
Gear oil for automatic transmissions
Item number:
1213102
Oil type:
Mineral
Approvals:
Voith H55.6335.xx
Recommendation:
Caterpillar TO-2,
CVT,
DTFR 13C140 (MB 236.7),
Ford M2C-138 CJ,
Ford M2C-166H,
Ford M2C-185A,
Ford MERCON®,
Ford SQM-9010B,
MAN 339 Z1,
MB 236.6,
MB 236.7,
Renk Doromat,
ZF TE-ML 03D,
ZF TE-ML 04D,
ZF TE-ML 05L,
ZF TE-ML 11A,
ZF TE-ML 14A,
ZF TE-ML 17C

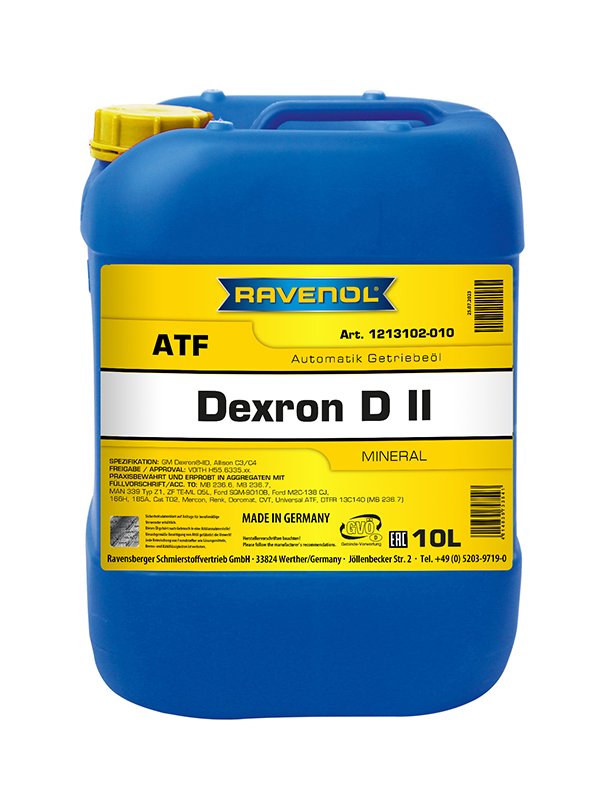

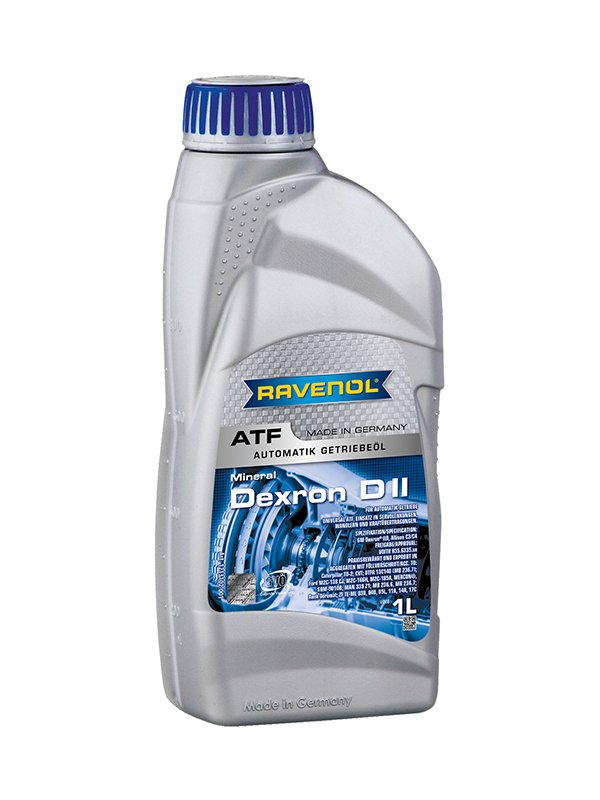

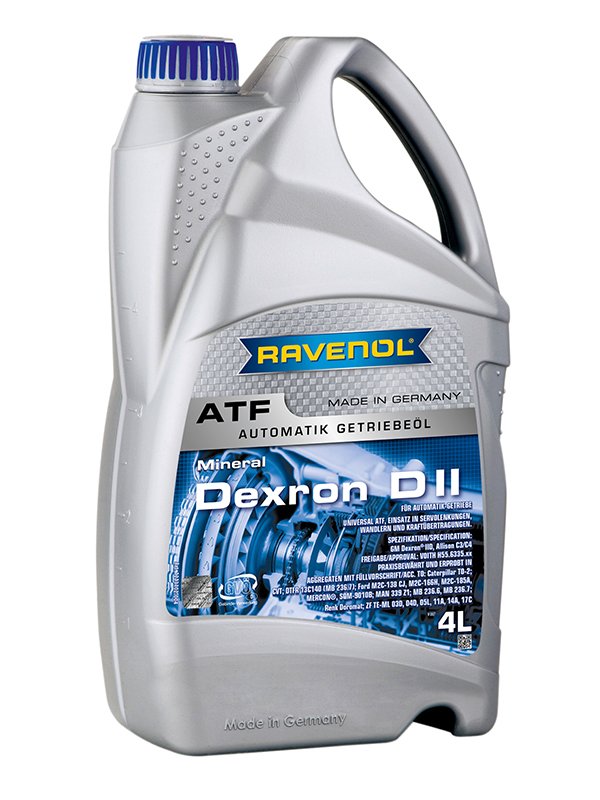

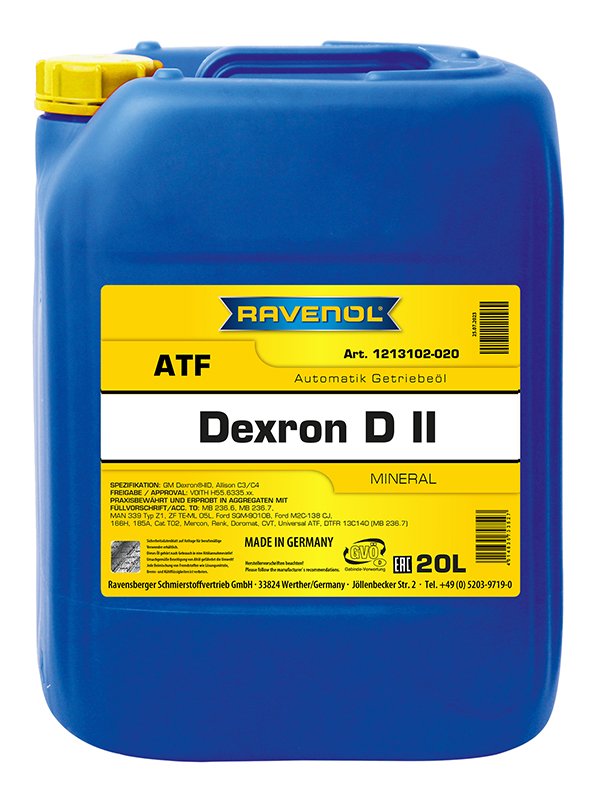

RAVENOL ATF Dexron D II is a first class transmission fluid for automatic transmissions of all vehicles and working machines on the basis of high refined mineral oils with a corresponding additive treatment.
Application Note
RAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.
Characteristics
- protection against corrosion, sludge and sticking
- an excellent and very shear stable viscosity temperature behaviour
- no problems concerning very low respectively very high temperatures
- an excellent high thermal capacity
- free of foam even under hardest loads
- neutral behaviour against sealing materials
- mixable and compatible with all kinds of ATF
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 848,0 | EN ISO 12185 |
| Colour | Rot | VISUELL | |
| Viscosity at 100 °C | mm²/s | 7,3 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 34,3 | DIN 51562-1 |
| Viscosity Index VI | 185 | DIN ISO 2909 | |
| Pourpoint | °C | -51 | DIN ISO 3016 |
| Flashpoint | °C | 210 | DIN EN ISO 2592 |
All indicated data are approximate values and are subject to the commercial fluctuations.
