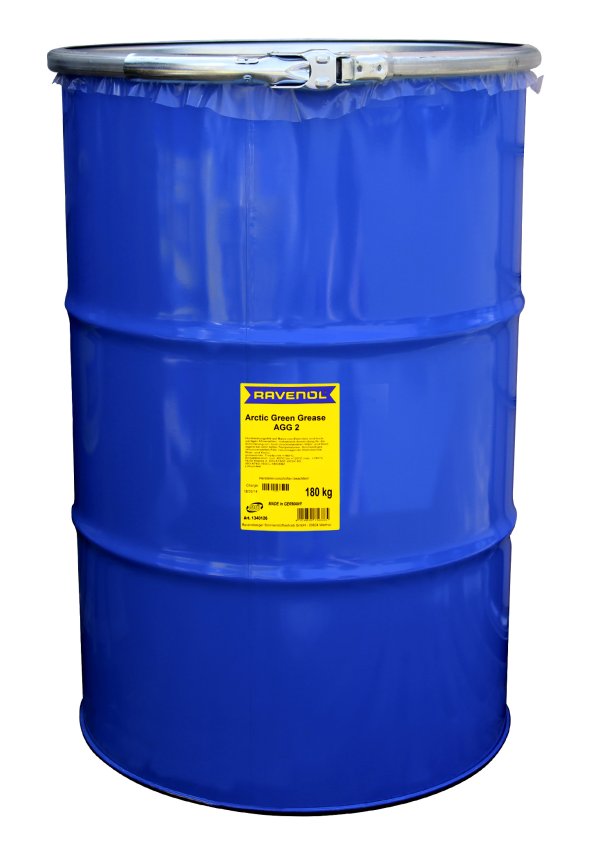

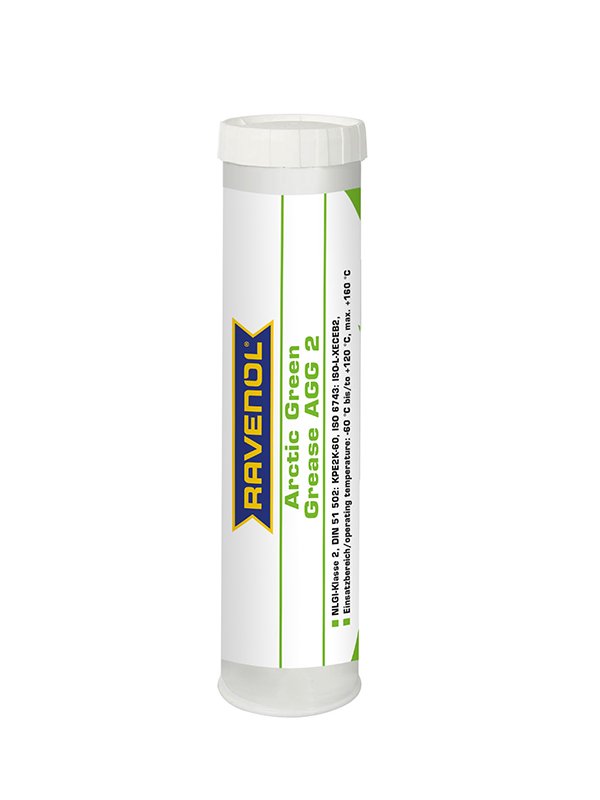

RAVENOL Arctic Green Grease AGG 2 is produced on the basis of synthetic-native esters and high quality mineral oils using thickening agents based on lithium soap.
RAVENOL Arctic Green Grease AGG 2 offers excellent working resistance, rust and corrosion protection.
Application for the lubrication of roller and friction bearings under extreme pressure at extremely low temperatures. Selected additives help reduce wear, even during severe continuous operation and significantly prolong the service life.
Application Note
RAVENOL Arctic Green Grease AGG 2 is used in roller and friction bearings under extreme pressure at extremely low temperatures.
The highest application temperature for RAVENOL Arctic Green Grease AGG 2 in continuous operation is 120°C. Peak performances of 160°C should not be exceeded.
Extremely high temperatures shorten the service life. Routine relubrication preserves material and saves costs.
Characteristics
- Working resistance
- Oxidation resistance
- Water resistance
- Good corrosion protection characteristics
- High thermal load capacity
- High pressure susceptibility
- Good adhesion
Technical Product Data
Property | Unit | Data | Audit |
---|---|---|---|
Colour | grün | VISUELL | |
Thickener | Lithium-Komplexseifen | DIN 51757 | |
NLGI-Class | 2 | DIN 51818 | |
Product Classification | KPE2K-60 | DIN 51502 | |
Working Temperature | °C | -60 / +120 | DIN 51825 |
Short term temperature up to | °C | 160 | DIN 51757 |
Worked Penetration at 60 Strokes | mm/10/25°C | 265-295 | ISO 2137 |
Corrosion (SKF Emcor dist. Water) | Korr. Grad | 0 | DIN 51802 |
Dropping Point | °C | >180 | DIN ISO 2176 |
Copper Corrosion (24h/120 °C) | 1 | DIN 51811 | |
Water Resistance (3h/90 °C) | °C | 1-90 | DIN 51807-1 |
VKA Pressure Carrying Capacity | N | 3000 - 3200 | DIN 51350-4 |
Kinematic Viscosity (Base Oil) at 40 °C | mm²/s | 20 | DIN 51562-1 |
All indicated data are approximate values and are subject to the commercial fluctuations.
